Product Description

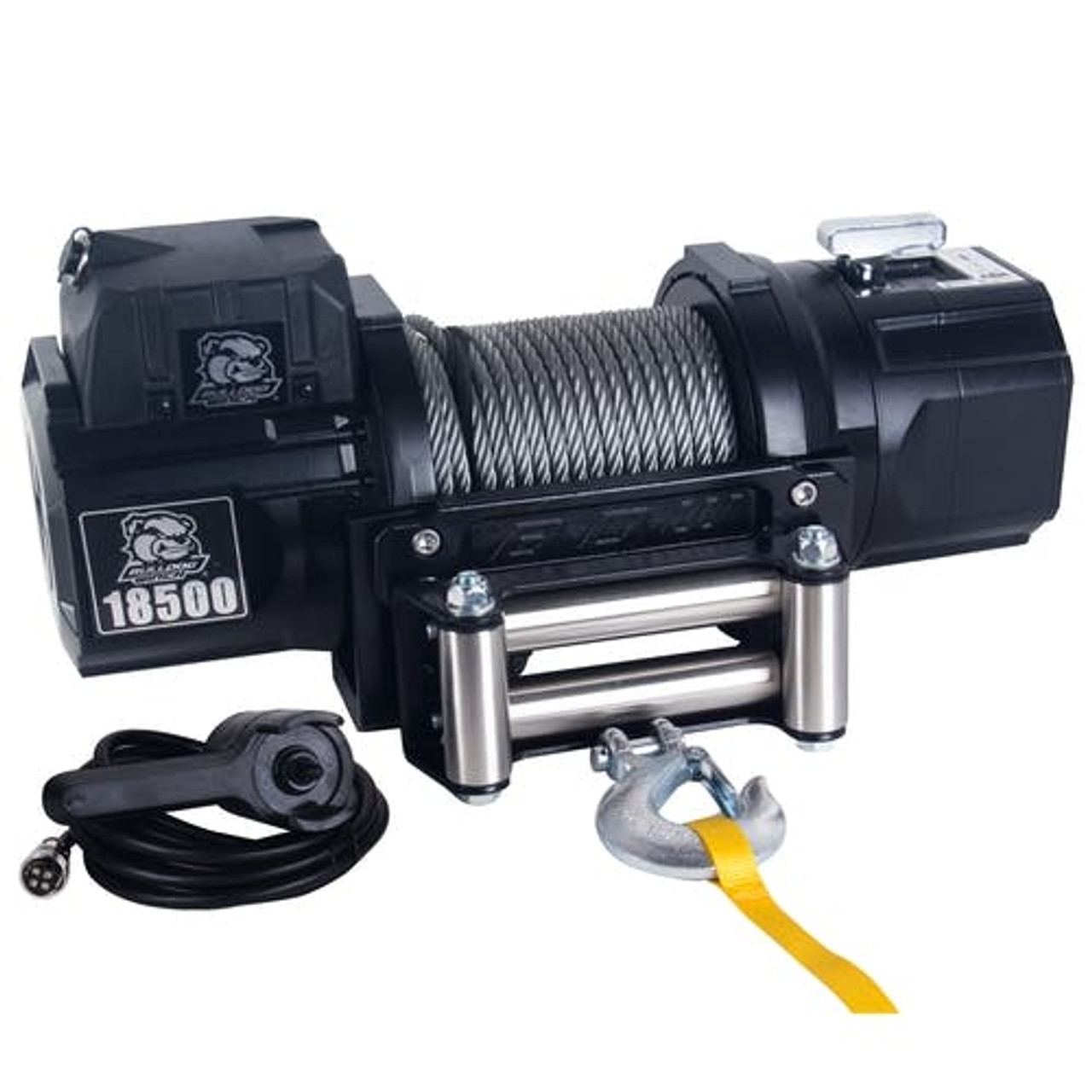

Bulldog Winch 18,500lb Heavy-Duty Winch with 85ft Wire Rope
18,500lb Heavy-Duty Winch with 85ft Wire Rope from Bulldog Winch. The Heavy Duty Steel Housing and Frame Components for Maximum Strength, Durability and Reliability, Premium Series Wound 5.6HP Motor for Maximum Performance, Powers Load In and Out, and Automatic Load Holding Brake.
Bulldog Winch HD Series Recovery Winch Features:
- 18,500 LB Pull Capacity
- 10" x 4.5" (254mm x 114.3mm) Inside Mounting Bolt Pattern
- 10" x 6.5" (254mm x 165.1mm) Middle Mounting Bolt Pattern
- 10" x 8.5" (254mm x 215.9mm) Outside Mounting Bolt Pattern
- Powers Load IN and OUT
- Automatic Load Holding Brake
- 1/2" x 85' Wire Rope
- Series Wound 12vDC 5.6HP Motor
- Battery Leads are 7.87, (2.4m):4 Stage Planetary Gear Train
- 505:1 Gear Ratio
- Pull &, Turn Clutch
- Brake is Automatic in Ratchet Wheel
- 27.76"(L) x 10.5"(W) x 12.5"(H)(705mm x 266mm x 318mm) Overall Dimensions)
- 3.46" X 8.66" (88mm X 220mm) Drum Diameter
