Product Description

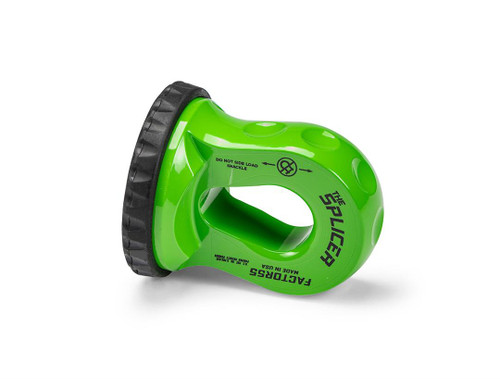

Factor 55 Splicer Splice-On Shackle Mount, Machined Aluminum, Green Finish, Winch Recovery Accessory, Synthetic Ropes Up To 1/2", Closed System Winching

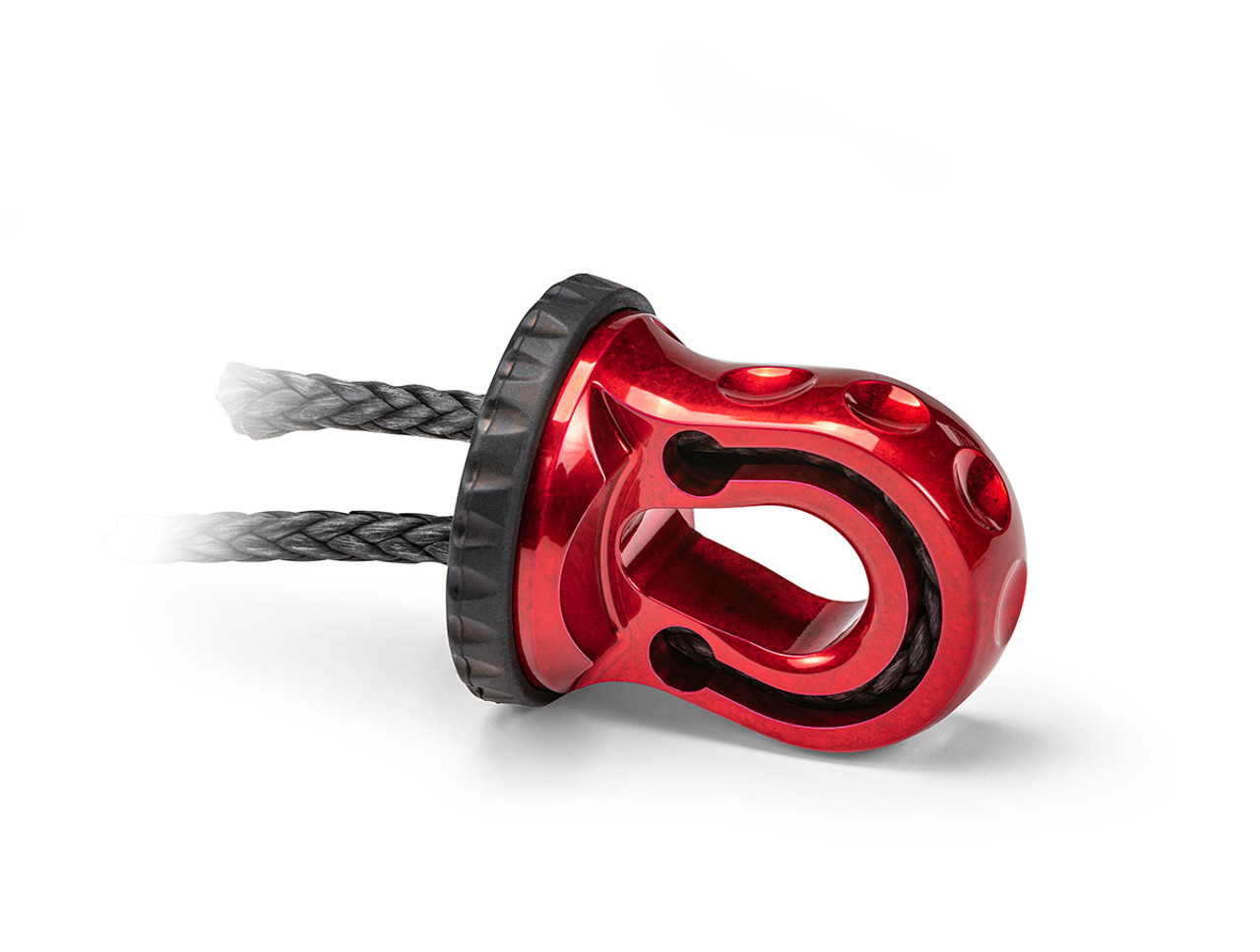

The world's first splice on synthetic rope shackle mounting thimble with rope protection and integrated rubber pad.
The unique machined rope passage provides a tough outer barrier to protect against rope impact and abrasion as well as UV exposure protection. Compatible with synthetic ropes up to 1/2&Prime, in diameter.
NOTE: Unlike the Factor 55 ProLink and Flatlink shackle mount products, The Splicer requires synthetic rope splicing knowledge. We recommend either the locking Brummel Splice or Long Bury Splice. There are many rope splicing video tutorials available on the web.
WLL: Due to the splice-on design, the Working Load Limit (WLL) is based on the rope diameter used. Each Splice-On Shackle Mount exceeds minimum bend radius requirements to provide full breaking strengths of synthetic winch lines used.
Factor 55 Splicer Winch Shackle Features:
- Replace conventional winch hooks with a safer more secure shackle/D-ring
- The Industry&rsquo,s first splice on winch rope thimble with impact &, UV protection
- Unique machined rope path provides complete rope protection
- Safer recoveries through Closed System Winching
- Lightweight &ndash, Precision CNC machined 6000 series Military Grade Aluminum
- For synthetic winch rope only
- Integrated EPDM rubber pad for fairlead protection
- Connects to both the pin and bow end of common ¾,&rdquo, screw pin shackles
- Connects to the pin ends of 7/8&rdquo, and 1&rdquo, screw pin shackles
- For synthetic winch rope diameters up to ½,&rdquo,
- Available in Military Spec Hard Anodizing (Mil-A-8625 F Type III) and powder coated finishes
- Weight: 25oz
- MADE IN THE USA
