Product Description

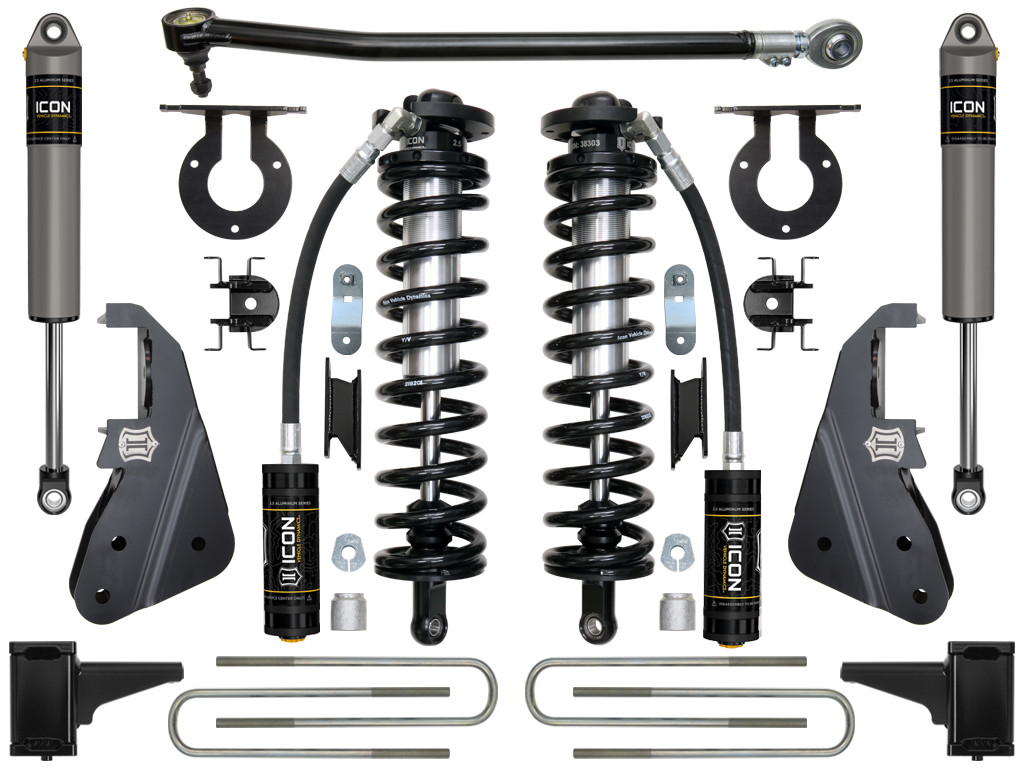

Icon Vehicle Dynamics 4-5.5" Lift Stage 2 Suspension System, 2017-2022 Ford Super Duty F-250/F-350
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Icon Stage 2 Suspension System
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
Tech Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
- APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
- TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
- TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25" over stock
- TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
- TECH NOTE: Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
- Ships in multiple boxes
