Product Description
Icon Vehicle Dynamics 0-3" Lift Stage 3 Suspension System, 2021-2023 Ford F-150 2WD

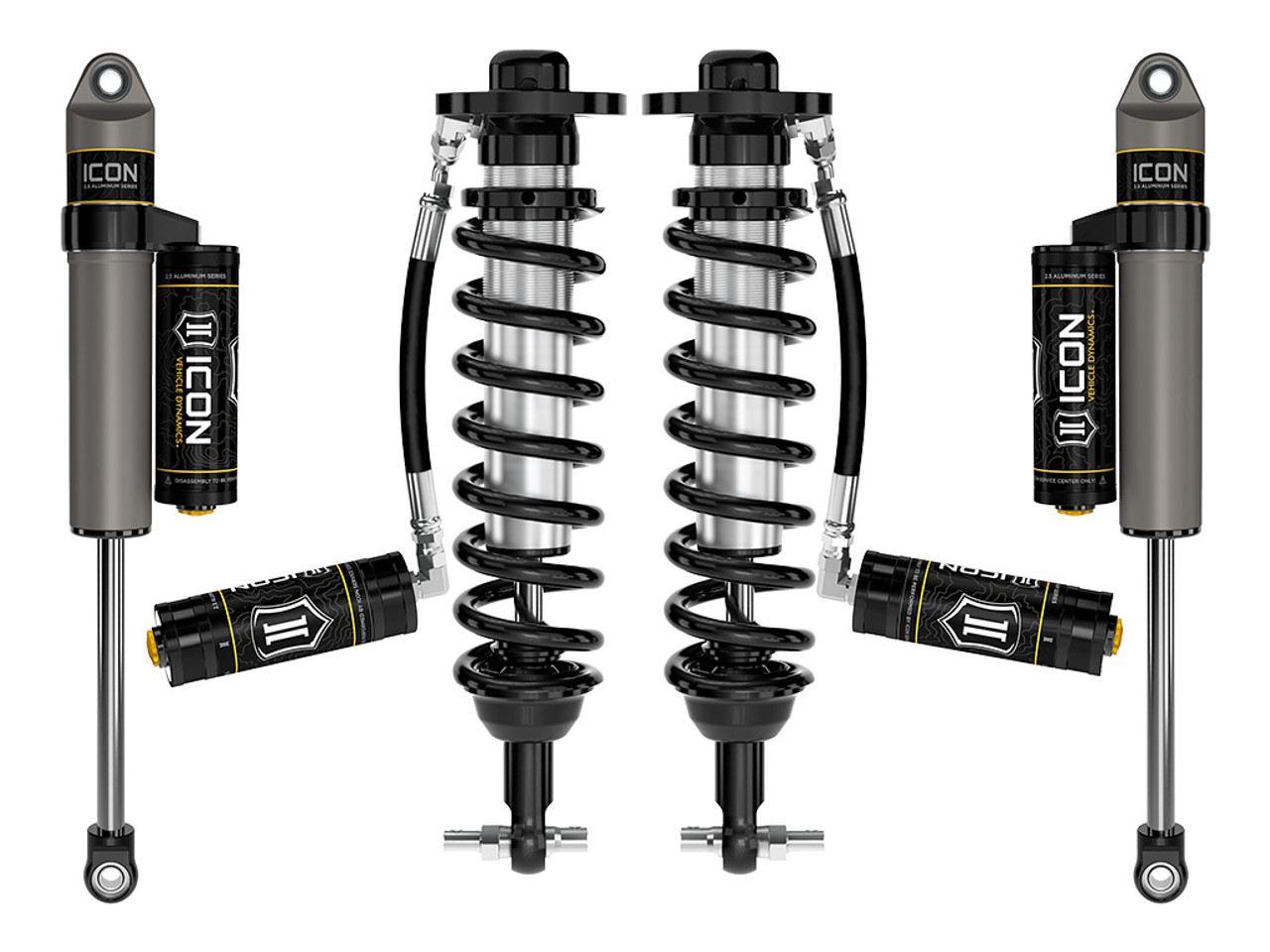

ICON Vehicle Dynamics 2021-2023 Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F-150 2WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Icon Stage 3 Suspension System
- Increased wheel travel and ride quality over stock with no change in towing capacity
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-on system - No cutting or welding necessary for install
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Adjustable coilovers provide 0-3" of lift height over stock
- Billet aluminum upper control arms for added strength, durability, and improved alignment geometry
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- High strength alloy CNC machined lower bar pins
Tech Information:
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
- APPLICATION NOTE #130: Equipped With Dynamic Bending Headlamps Purchase Box 611071
- TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models
- TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
- TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
- TECH NOTE: Not compatible with models equipped with OnBoard Scales
- TECH NOTE: Not compatible with F-150s equipped with BlueCruise
- TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
- Ships in multiple boxes
