Product Description
Icon Vehicle Dynamics 7" Lift Stage 4 Suspension System, 2005-2007 Ford Super Duty F-250/F-350

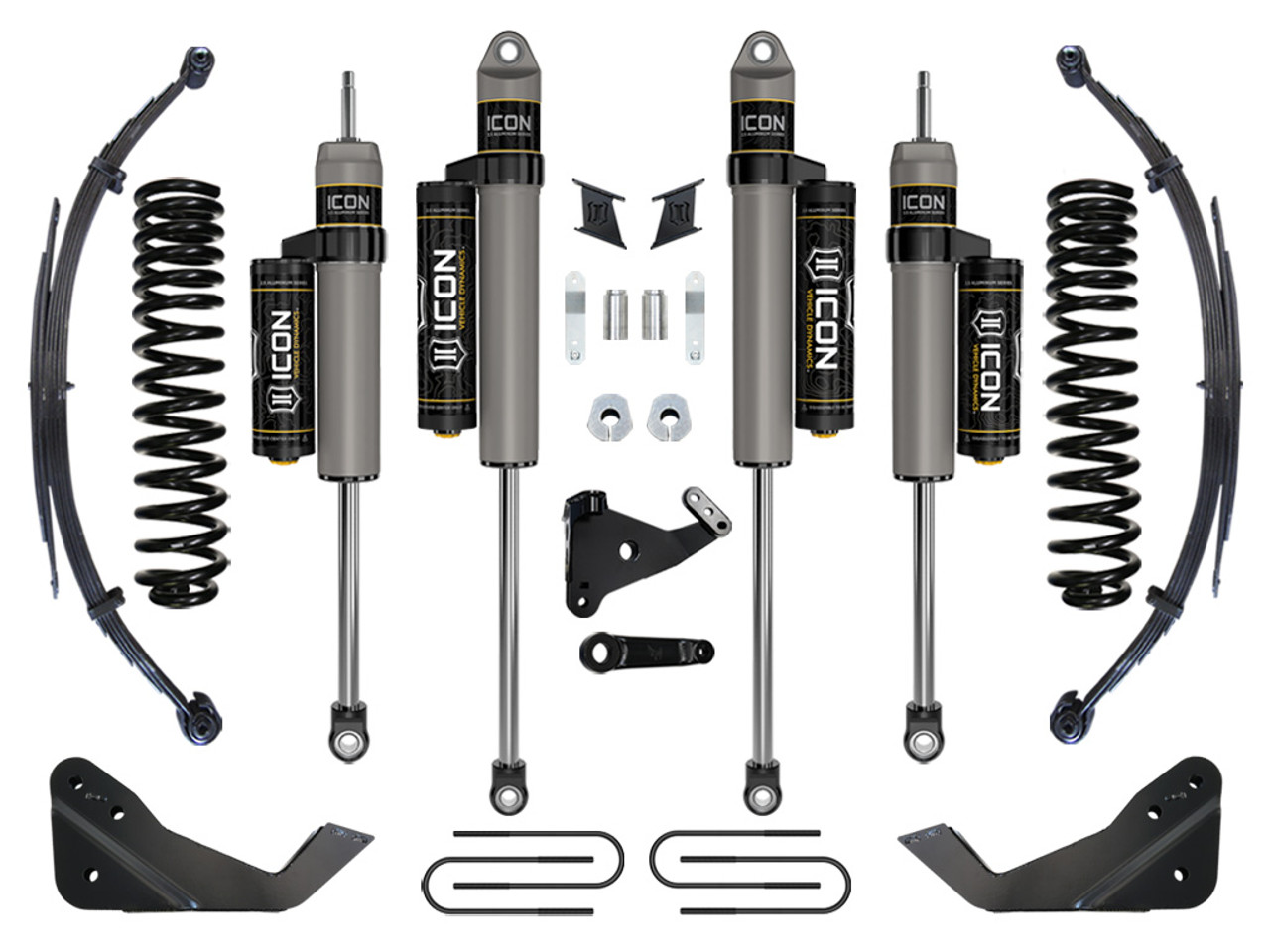

ICON’s 7” Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38” tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5 Aluminum Series piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts.
Icon Stage 4 Suspension System
- 50% increase in wheel travel
- Less body-roll than stock truck
- State of the art dual-rate coil spring
- Lifetime guarantee that coil springs wonÂ’t sag
- Clears 37" Tall Tires
- No change in towing capacity
- No driveshaft modifications needed
- 100% Bolt-on system - No drilling, cutting or welding necessary for install
- Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality
Tech Information:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
- APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
- APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
- Ships in multiple boxes
