Product Description
ReadyLift 3'' SST 2.1 Lift Kit with Fabricated Control Arms and Falcon 2.1 Monotube Shocks | 2020-2024 Chevrolet/GMC 2500HD/3500HD RWD, 4WD | 62-30360
ReadyLift delivers a performance game changer for the popular 2020-2024 Chevy Silverado and GMC Sierra 2500/3500 HD trucks with the release of ReadyLift's 3 SST2.1 premium lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to clear up to 35" tires. With vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all fReadyLift's corners, this lift kit provides a better-than-factory feel. These Falcon 2.1 Monotubes shocks are designed to deliver performance that increases travel and the ability to navigate rough terrain while delivering smooth on-road comfort.

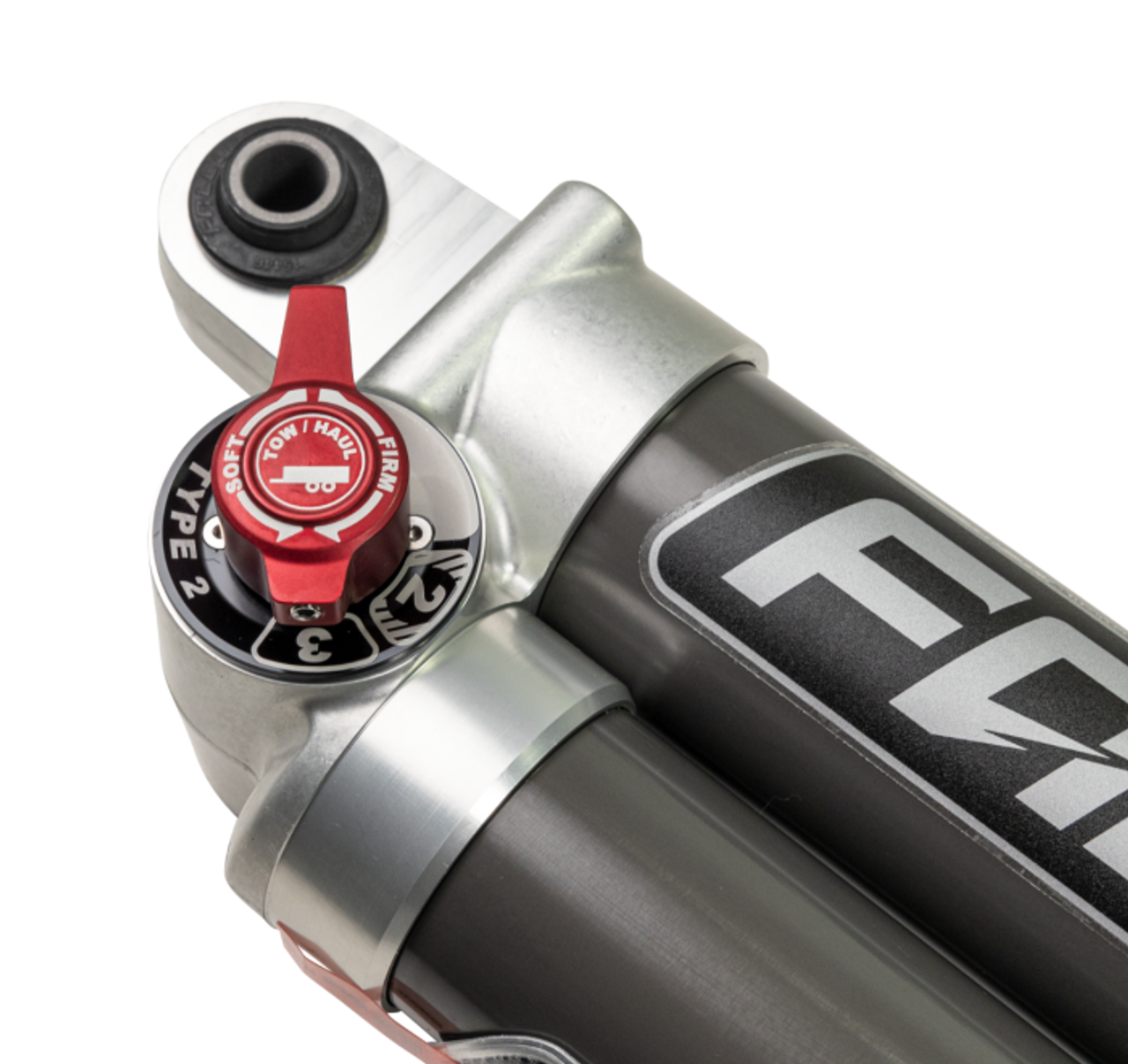

This 62-30360 system provides a 3" front lift with forged torsion keys coupled with heavy-duty fabricated 4130 chromoly steel upper control arms featuring all-new heavy-duty high angle ball joints and maintenance-free TCT non-bonded pivot bushings. In the rear, lift blocks provide for a lifted, level stance. The new SST2.1 system pairs front monotube struts with rear adjustable piggyback shocks. The easy-to-use 3-position Fast-Adjust settings include Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul. Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties.
Special Note: When setting the torsion key adjustment bolt do not exceed 27 from the wheel center to the fender edge. Exceeding this will overlift the vehicle creating a top-off condition, meaning the suspension has little to no down travel. The result is poor ride quality and premature wear of components.
ReadyLift SST Lift Kit Features:
- 3" Front/ 1" Rear SST Lift Kit
- Fits 2020-2024 GM HD 2500/3500
- SST lift-specific Forged Torsion Keys
- Xtreme-Duty fabricated 4130 chromoly steel upper control arms
- Front inner fender bracket to fit larger tires
- Allows for no-trim 20x9 0 offset on a 35x12.50 tire.
- Max with trimming: 20x10 -18 offset - 35x12.50. Some fender well trim variances may be experienced between Silverado and Sierra models.
- Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all fReadyLift's corners.
- Improved dynamic roll control and low-speed damping.
- Dramatic improvement in on-road comfort and off-road performance.
- Optimized fitment for unobstructed suspension travel and articulation.
- 6061-T6 aluminum alloy shock body resists Impact to protect internal components.
- Smooth-honed internal shock body surface for long-term performance.
- 3/4 induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.
- Large shaft diameter provides a wide range of adjustments on adjustable shocks.
- Hard anodized 6061-T6 aluminum alloy billet piston.
- 1-piece Teflon bronze piston wear band w/ O-ring.
Suggested Tire Size:
- 20x9 0 offset - 35x12.50 tire.
- Max with trimming: 20x10 -18 offset - 35x12.50
Note: Silverado and Sierra have different fender well opening sizes - some minor trimming my be required depending on true tire size and design. Max width on stock wheels is 11.5".

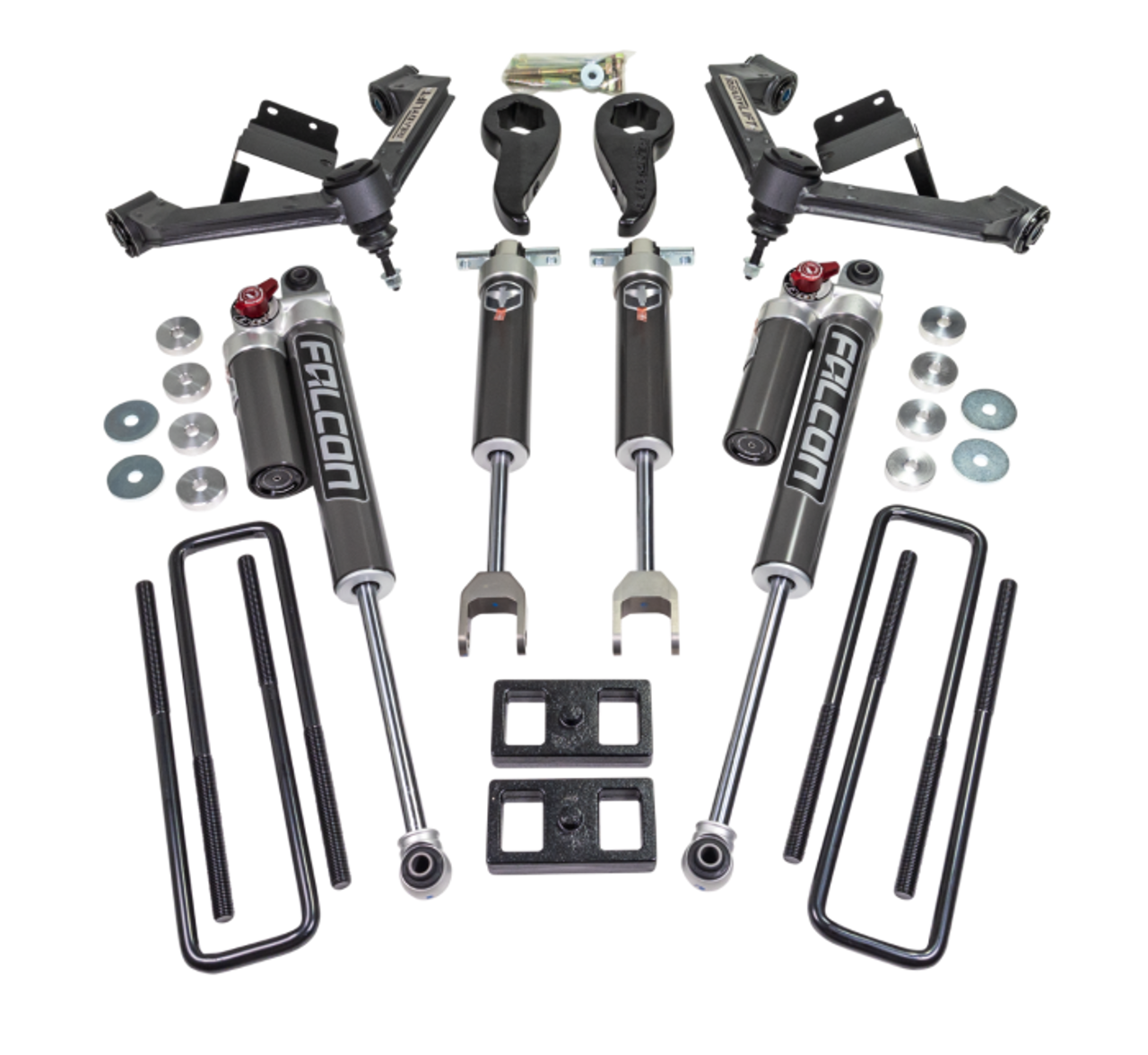

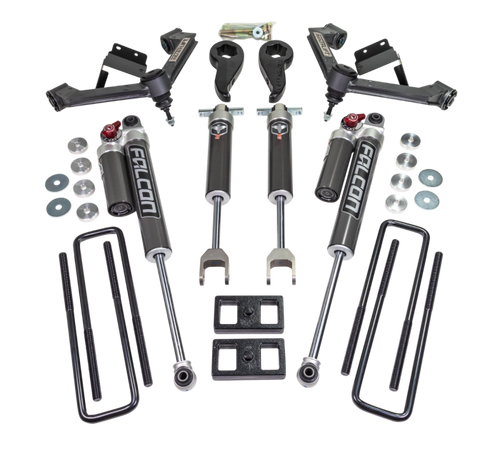

Kit Components
- GM HD FR FNDR BRACKET RIGHT QTY 1
- GM HD FR FNDR BRACKET LEFT QTY 1
- GM HD 1" UBOLT KIT QTY 1
- 1/2" DIFF DROP SPACER QTY 8
- DIFF SPACER LASER CUT WASHER QTY 4
- HARDWARE KIT FOR QTY 1
- TORSION BAR KEY 0-3" QTY 2
- 1" REAR BLOCK QTY 2
- FALCON FRONT SHOCK QTY 2
- FALCON REAR SHOCK QTY 2
- UPPER CONTROL ARM RIGHT QTY 1
- UPPER CONTROL ARM LEFT QTY 1
