Product Description
ReadyLift 3'' SST Lift Kit equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS) | 2022-2024 Toyota Tundra 2WD, 4WD | 69-52330

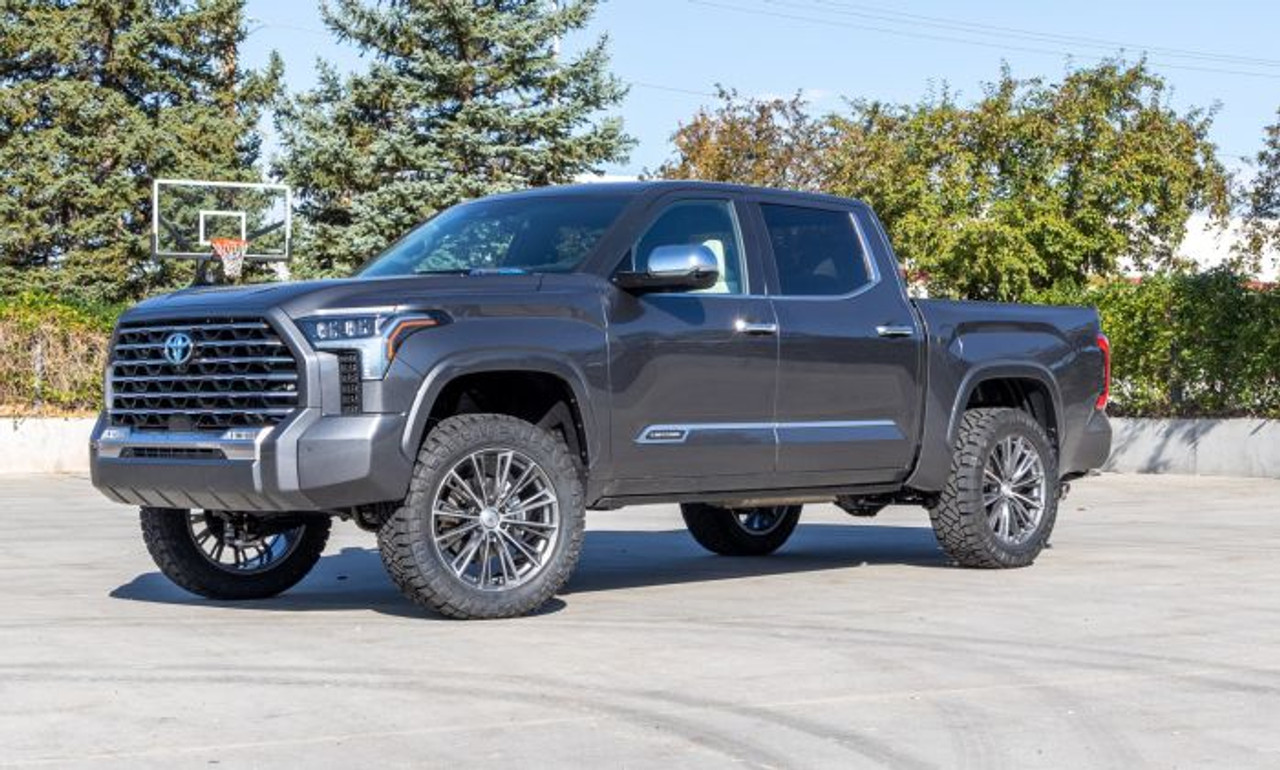

The all-new 3 SST Lift for the 2022-2024 Tundra is exclusively for Tundra equipped with Load-Leveling Rear Height Control Air Suspension and Adaptive Variable Suspension (AVS). This new kit gives customers that level lift on all fReadyLift's corners of the air-equipped trucks. This new kit is the fast, reliable, and cost-effective way to bring the front of yReadyLift's vehicle level with the rear for that ideal lifted stance. ReadyLift's front strut spacer eliminates the hassle, time, and concern of compressing springs while ReadyLift's rear airbag spacers allow the user to maintain the full range of use from the rear air system. Shock extensions, brake line spacers and brackets, and a slotted rear ride-height sensor bracket (for fine-tuning adjustments) are included in the kit.
NOTE: Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option. Kits only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation). Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.
ReadyLift SST Lift Kit Features:
- 3 Lift allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset
- Maintains full operation and range of OEM load-leveling system
- Retains factory turning radius
- Allows for use of stock 20 wheels
- Offset rear spacers place the airbag back in the factory location, reducing the chance of failure
- Fewer parts for a simpler install
- Slotted rear ride height sensor bracket allows for personalized adjustment
Suggested Tire Size:
35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

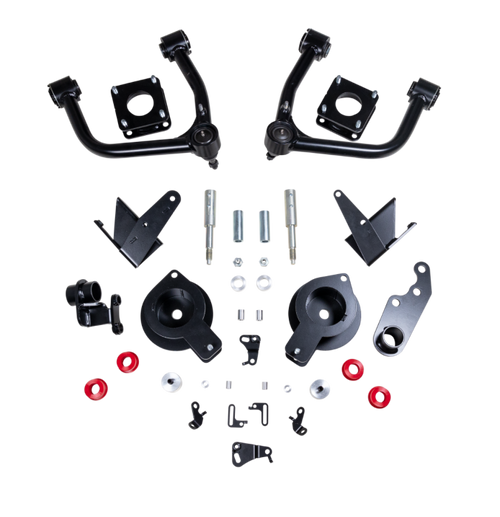

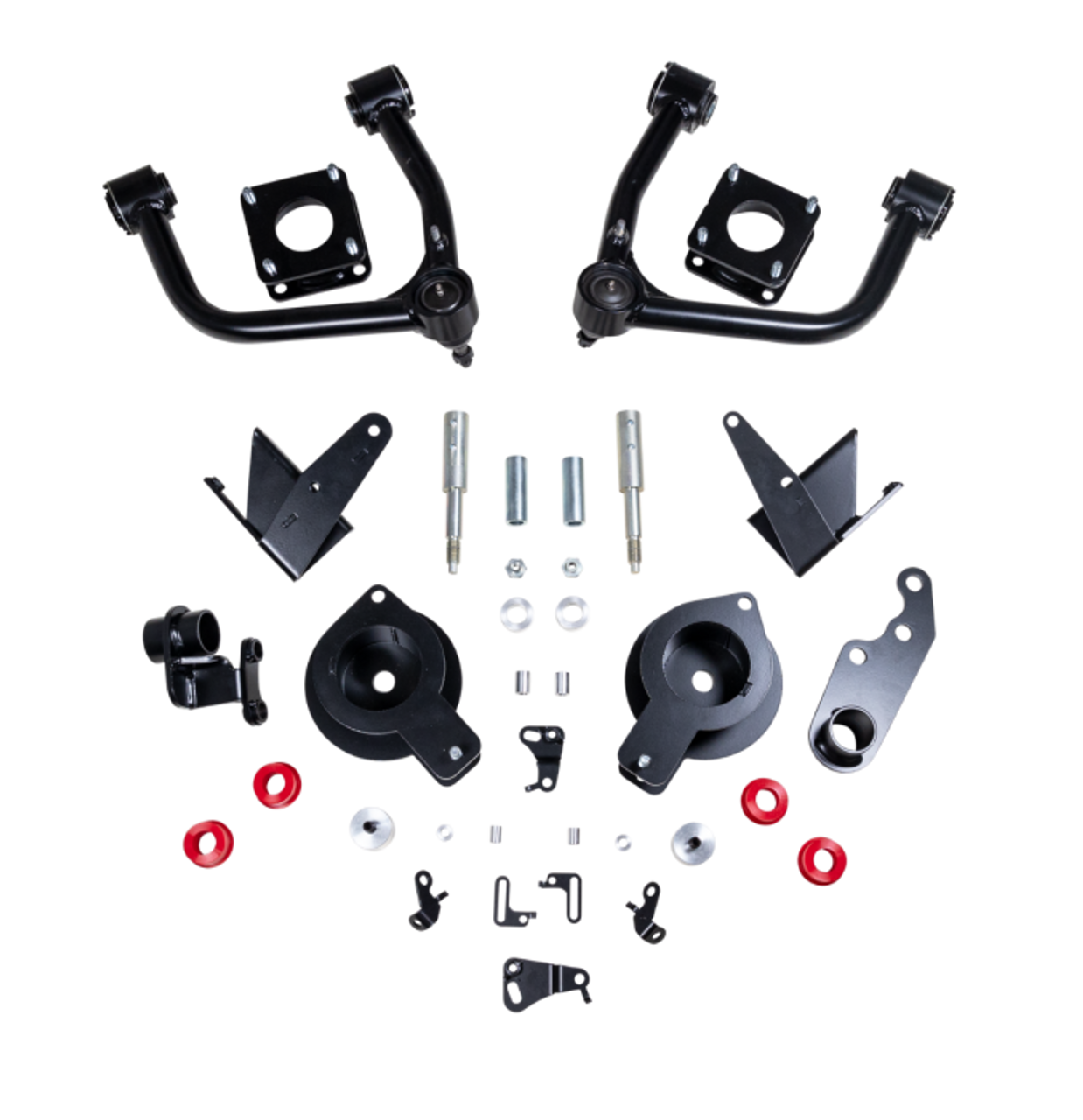

Kit Components
Front Strut Spacer, Upper Control Arm Left Hand Side, Upper Control Arm Right Hand Side, Front Differential Drop Left Hand Side, Front Differential Drop Right Hand Side, Crush Sleeve, Differential Drop Polyurethane Bushing, End Link Spacers, Brake Line Relocation Bracket Left Hand Side, Brake Line Relocation Bracket Right Hand Side, Rear Brake Line Relocation Bracket, Left hand side Airbag Spacer, Right Hand Side Airbag Spacer, Left Hand Side Bump Stop Extension, Right hand Side Bump Stop Extension, Rear Shock Extensions, Rear Brake Line Spacers - Tall, Rear Brake Line Spacers - Short, Airbag Rideheight Sensor Brackets, Hardware Pack
