Product Description
ReadyLift 4'' Coil Spring Lift Kit with Falcon 1.1 Monotube Front/Rear Shocks and Front Track Bar Bracket with Radius Arms | 2017-2022 Ford F250/F350 Diesel 4WD | 49-27421
ReadyLift Suspension is now offering ReadyLift's first 4" Coil Spring Lift Kit fitting 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke® trucks with new Tubular Radius Arms. The 49-27421 includes front and rear Falcon 1.1 Monotube series performance shocks with ReadyLift's venerable front track bar relocation bracket, tubular radius arms, and rear fabricated blocks. This delivers an excellent alternative for lifting a F250/F350 Super Duty trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance! Many consider this lift height the Āsweet spotĀ for Super Duty driving dynamics and maximum tire size while maintaining everyday practicality.
The all-new Radius Arms are designed to correct the suspension geometry on lifted models. These new radius arms are heavy duty and are built to handle the use and abuse demanded out of Super Duty trucks. The new radius arms hold up to the abuse and surpass the factory radius arms and support gussets. The arms are formed inward, allowing for additional tire clearance, and providing the ability to install oversized tires. The direct bolt-on design promotes quick and easy installation. This optimum lift height allows for up to 37" tall tires. The coil spring kit delivers a great ride and handling performance! The key ingredients to improving yReadyLift's ride are the new specially engineered coil springs teamed with Falcon shocks and track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road.
The ReadyLift 4" Coil Spring lift kit system for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, ReadyLift's time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4Ā Coil Spring Suspension Kit System.
NOTE: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. 2017-2019 ride height may be slightly lower. Single Cab configuration has not been validated for fitment & drivability by ReadyLift.
ReadyLift Coil Spring Lift Kit Features:
- 4" Coil Spring Lift Kit With (4) Monotube Falcon 1.1 Shocks.
- Eye-catching HD Tubular Radius Arms helps to correct caster angle.
- Bolt-on lift kit - no structural modifications required.
- Allows for up to 37" tall tires on 9" wide wheels with +18 offset.
- Diesel trucks with rear single-wheel only.
Falcon Shocks - The Ultimate Blend of Performance, Quality, and Bang for the Buck
- Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.
- Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road.Ā High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.
- Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions
- Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.
- Falcon 1.1 Monotube Shock Specification
- 2-1/8" shock body for high-value performance
- 6061-T6 aluminum alloy billet piston
- 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling
- Microcellular Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
Suggested Tire Sizes:
- 37x12.50 for no rub on a 9" wide wheel with 0 offset
- 18" - 37X12.5R18
- 20" - 37X12.5R20
- 22" - 325/60R22

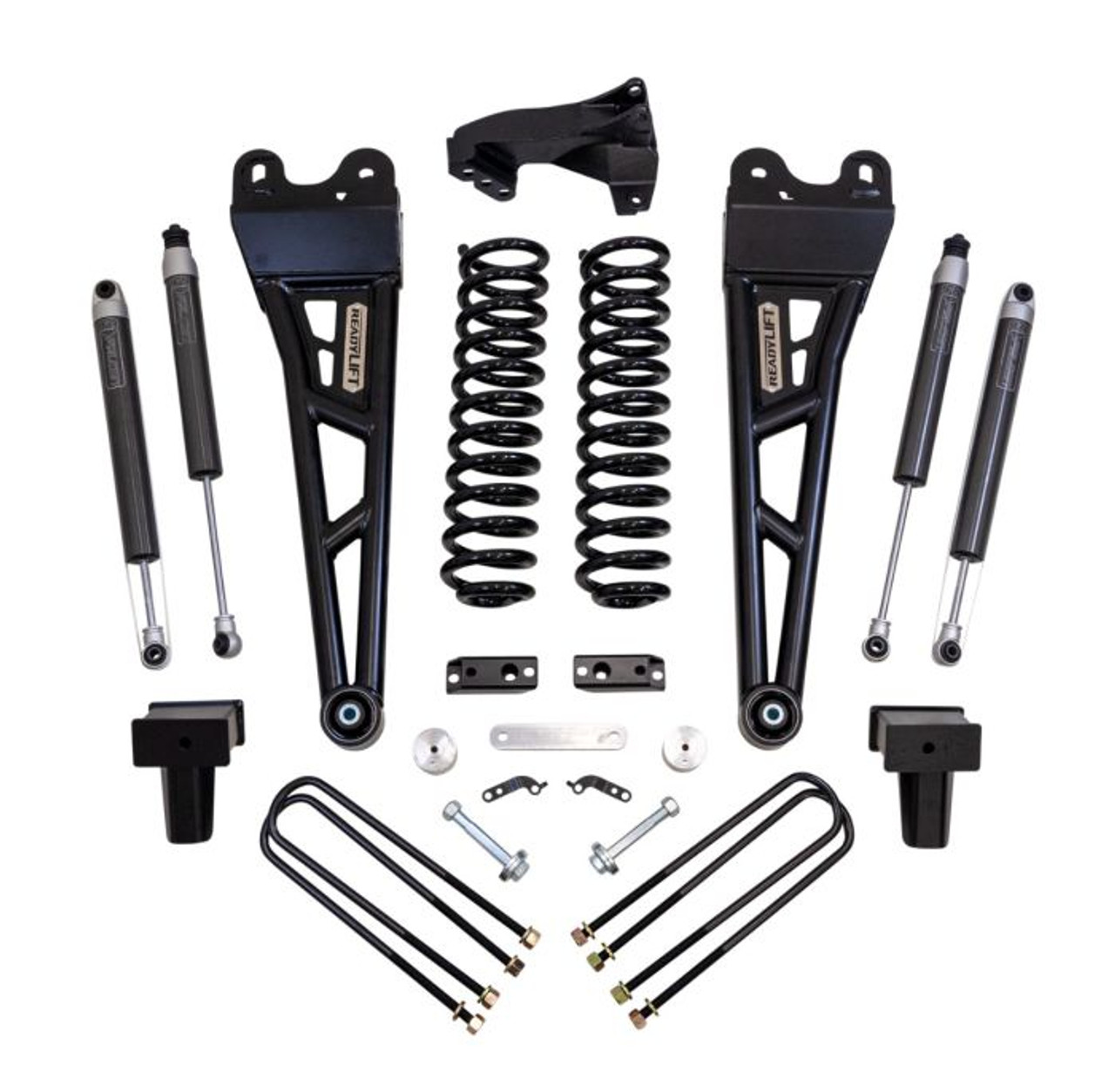

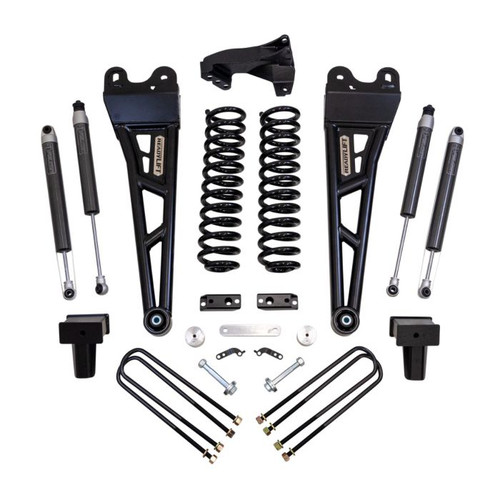

Kit Components
- 4" Lift Springs
- Falcon 1.1 Monotube Front and Rear Shocks
- Track Bar Relocation Bracket
- Radius Arm
- Sway Bar Drops
- Bump Stop Extensions
- Carrier Bearing Drop
- Front Brake Line Brackets
- Fabricated Rear Lift Blocks
- Hardware Pack
