Product Description
ReadyLift 8'' Lift Kit with Falcon 1.1 Shocks | 2020-2022 Chevrolet/GMC 2500HD/3500HD RWD, 4WD | 44-30820
ReadyLift's all-new 44-30820 8" lift kits with ReadyLift Falcon 1.1 Monotube shocks are a great option for the customer who wants a taller, lifted height and the ability to run up to 38" tall tires. The 44-30820 lift kits include laser-cut, fabricated heavy-duty steel cross-members, new cast iron OE-style knuckles with the perfect geometry built-in, torsion arm brackets, popular fabricated steel upper control arms with corrected ball joint angles, taller fabricated steel rear lift blocks and new forged torsion keys with the proper amount of indexing.
These new torsion bar relocation brackets eliminate the traditional lowering of the torsion bars, which can inhibit ground clearance from a lift installation and help to improve the overall driving experience. Additionally, each kit includes crucial differential drop brackets and CV axle spacers, 12" sway bar end links, bump stop extensions, OE style cast iron rear lift blocks, heavy-duty steel skid plate, and finally, Falcon 1.1 Monotube shocks.
NOTE: Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately. Custom U-bolt length may vary by vehicle application. If the ReadyLift kit's standard U-bolts are too short, ReadyLift recommends locally sourcing custom U-bolts built to each truck's specifications.
ReadyLift Lift Kit Features:
- Laser cut, CNC formed heavy-duty front/rear drop crossmembers.
- Bolt-on installation “ well almost. Some slight modifications will be required.
- OE-style cast iron knuckles have been precisely engineered to provide the ideal geometry to ensure proper alignment and improve the overall driving experience.
- Increases ground clearance.
- Includes ReadyLift's new torsion bar relocation brackets that keep the torsion bars in their factory location “ no need to lower the torsion bars to lift!
- 6" lift kits - Allows for 37x12.50 on a 9" wide wheel with zero offset.
- Available with ReadyLift Falcon 1.1 Monotube F/R shocks.
- Includes important differential drop brackets and CNC-machined billet Aluminum CV axle spacers.
Suggested Tire Size
- 38" Maximum tire diameter
- 38x12.50 for no rub on a 9" wide wheel with 0 offset

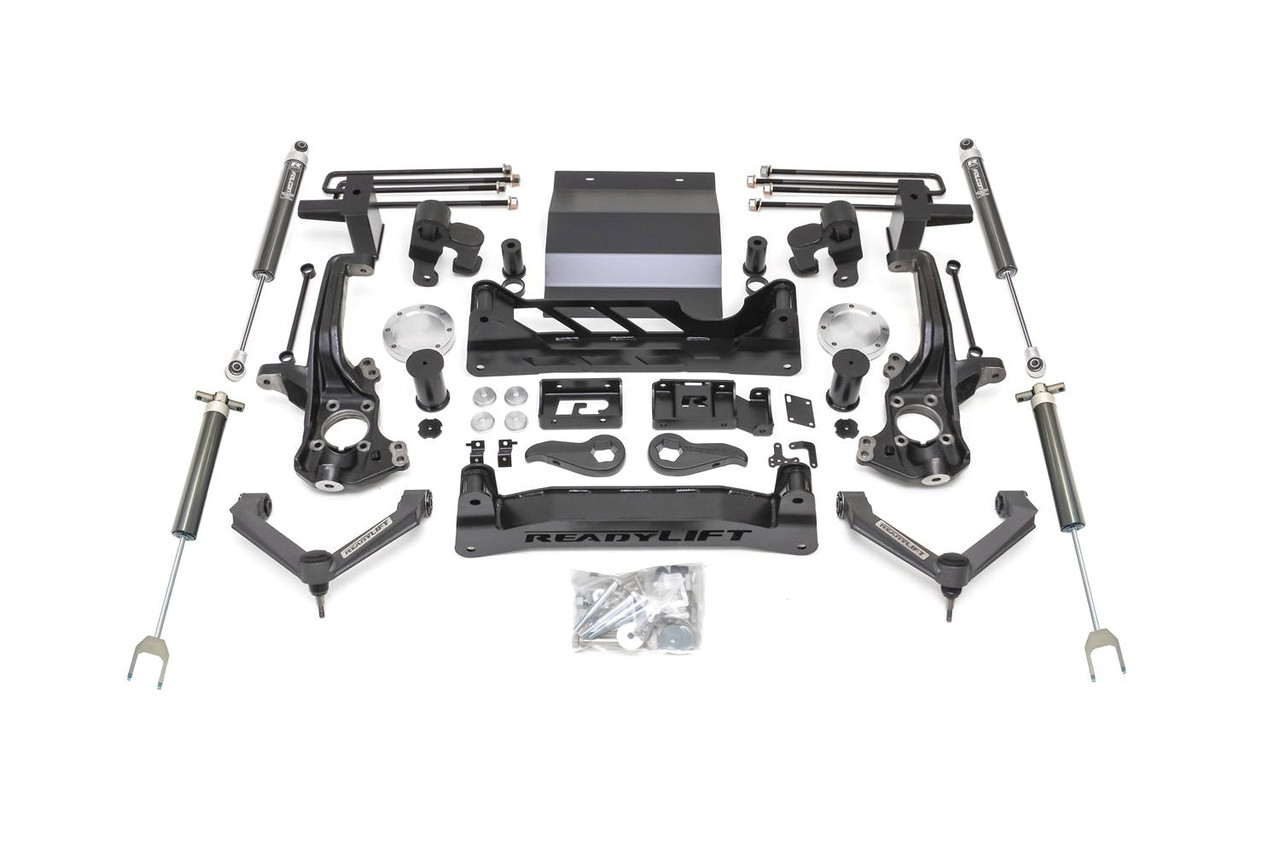

Kit Components
- Heavy Duty welded steel crossmembers
- Heavy Duty iron knuckles
- Cast iron rear lift blocks with integrated bump stop landing pads.
- forged torsion keys with the proper amount of indexing
- Heavy duty skid plate.
- Assorted hardware and accessories
- Includes 4 Falcon 1.1 Monotube Shocks.
