Product Description
ReadyLift 6" Lift Kit | 2016-2023 Toyota Tacoma (6 Lug) RWD/4WD | 44-5660, Not for use on 5-lug, TRD Pro, TX Baja or XSP-X models
ReadyLift now offers an all-new 6" Big Lift Kits for 2016-2023 Tacoma trucks and are ready to provide you with a superior choice for increasing the lift height of these mid-size Toyota trucks. 44-5660 fits SR, SR5, TRD Sport, TRD Off-Road & Limited models: (Not for use on 5-lug Tacoma, TRD Pro, TX Baja or XSP-X models)
Using the same drop bracket style engineering that you appreciate in ReadyLift's Tundra lift kits, this new Tacoma 6" big lift kit is power packed with great features that improves installation effort while providing a great ride and handling with the ability to run up to a 35" tall off-road tire! The key to this kit's success is ReadyLift's popular proprietary heavy-duty top mount offset strut extensions to gain a true 6 inches of front lift. Other great features that drastically improve handling and overall driving mannerisms are the precision-engineered cast iron lift knuckles that provide perfect alignment geometry throughout the suspension cycle and the retention of the factory sway bar mounting locations. You even get to keep the factory skid plate and gravel guard!
This kit includes heavy-duty laser-cut, CNC-bent steel cross members to properly lower the front differential and maintain the structural integrity of the frame. For the rear ReadyLift include 5 inch tall fabricated steel lift blocks teamed up with a pair of performance-tuned Bilstein 5100-series shocks. ReadyLift's engineers checked all of the boxes to make this one amazing big lift kit for Tacoma trucks! Over 6 months of real-time daily road testing provided exceptional data that confirms - this really is one great Tacoma lift kit allowing Tacoma owners to run up to a 35x12.50 tire on a 9" wide wheel with either +12, 0 or -18 offsets! Minimum 18" wheel diameter required.
Finally, newer Toyota Tacoma trucks are often equipped with numerous safety highlights like electronic stability control, airbags, and various other high-tech features under the TSS-PCS umbrella. ReadyLift has baseline tested a factory 2018 MY Tacoma and also tested the same vehicle upgraded with ReadyLift's all-new 6" Big Lift Kit with larger aftermarket wheels and tires. Results without and with the suspension upgrades installed on ReadyLift's test vehicle show definitively that the active and passive systems recognized the operating conditions and environmental factors (lane location, proximity of other vehicles, traffic at a distance, pre-collision objects in and around the vehicle path) and took appropriate corrective actions (including alerts and intervention) as intended by the factory safety system settings.
Note: Not for use on 5-lug, TRD Pro, TX Baja or XSP-X models
ReadyLift Lift Kit Features:
- 6" Suspension Lift
- Includes Rear Bilstein Shocks
Suggested Tire Size:
35x12.50 tire on a 9" wide wheel with either +12, 0 or -18 offsets

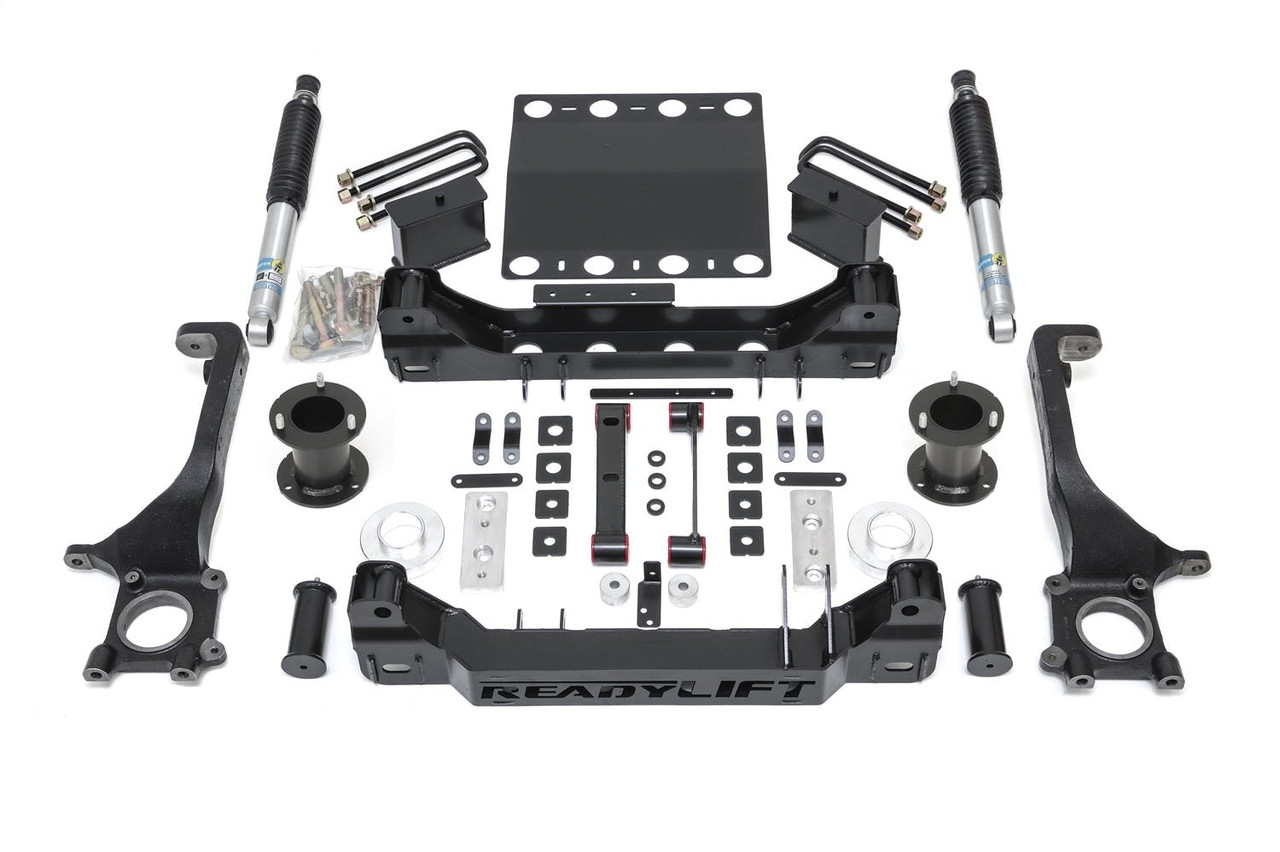

Kit Components
- Front/Rear laser cut CNC machined cross members
- Top mount strut extensions
- Cast iron lift knuckles
- Bump stop extensions
- Sway bar drop spacers
- Differential drop assemblies
- Brake line brackets
- 4" tall rear lift blocks with longer u-bolts
- Heavy-duty skid plate
- Bilstein 5100 series rear shocks
