Product Description
ReadyLift 6'' Lift Kit with Falcon Shocks | 2014-2018 Dodge/Ram 2500 4WD Diesel ONLY | 49-16400
ReadyLift proudly introduces the Ram 2500 HD 6" Lift Kit available with Falcon 1.1 Monotube shocks engineered specifically for 2014-2018 MY Dodge Ram 2500 HD 4WD diesel short bed trucks. This exciting lift system provides 6" of lift and features the best engineering technology you will find on the market today. The 6" system utilizes performance front coil springs providing a true 6" of front lift. In the rear, ReadyLift use ReadyLift's proven spring spacer design technology featuring heavy-duty 3.5" lift rear spacers mating perfectly with the factory rear coil springs and frame.
Along with performance springs and spacers, ReadyLift's team developed rugged frame-mounted radius arm drop brackets that reposition the factory radius arms back to the factory geometry. This is critical for retaining OEM alignment specifications. The kit also includes heavy-duty fabricated steel front and rear track bar brackets, dropped cast-iron front pitman arm, and front sway bar relocation brackets. ReadyLift even include front/rear bump stop extensions to prevent over-compression during off-road use. Kit includes fReadyLift's (4) Falcon 1.1 Monotube Shocks optimized for on-road driving with increased comfort and stability for driven vehicles on and off-road. High-value performance is the driving force behind these vehicle-specific dampers for the Ram 2500 HD.
This new 6-inch performance suspension lift system is designed exclusively for the 2014-2018 MY Ram 2500 HD 4WD trucks with diesel engines and allows for increased tire packages up to 37x13.50 and 9.5" wide wheel sizes from 17-20" diameters.
Note: Diesel trucks only Note: Not compatible for trucks with auto ride or rear air. Single Cab configuration has not been validated for fitment & drivability by ReadyLift.
ReadyLift Lift Kit Features:
- 6" Suspension Lift
- Include Falcon Shocks
- Diesel Trucks ONly
Suggested Tire Size:
- 37" Maximum tire diameter
- 37x13.50 for no rub on a 9.5" wide wheel with 0 offset
- 18" - 37X13.5R18
- 20" - 37X13.5R20
- 22" - 325/60R22

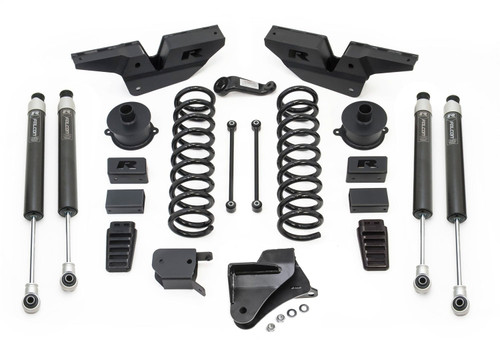

Kit Components
- 6" lift front coil springs.
- Fabricated steel radius arm drop brackets.
- Dropped pitman arm.
- Heavy Duty steel rear coil spring spacers.
- Front/Rear sway bar mount drop spacers.
- Fabricated steel front track bar drop bracket.
- Extended length front bump stops.
- Extended length sway bar end links.
- Falcon 1.1 Monotube shocks.
