Product Description
ReadyLift 4.5'' coil lift kit - front and rear track bar brackets, front and rear coil springs w/ Falcon shocks | 2019-2024 Dodge/Ram 2500 4WD | 49-19420
The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance. These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks. Both 4.5" Ram HD kits include ReadyLift's unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles. The Ram 2500 HD comes with the standard output diesel engine DIS system.
Kit 49-19420 includes everything in ReadyLift's popular 6 lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 4.5" lift front springs, 3" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube shocks front/rear shocks are all included in this premium kit.
For use on diesel 2500 trucks only.
ReadyLift Coil Lift Kit Features:
- 4.5-inch front/3-inch rear spring lift kit
- Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember.
- Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.
- For use on Diesel engine Ram 2500 4WD HD trucks only.
- Allows for up to 37x13.50 tires on 20" x 9" wide wheels with -18 offset.
Falcon Shocks The Ultimate Blend of Performance, Quality, and Bang for the Buck
- Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.
- Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road. High- Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.
- Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions
- Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.
- Falcon 1.1 Monotube Shock Specifications
- 2-1/8" shock body for high-value performance
- 6061-T6 aluminum alloy billet piston
- 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling
- Microcellular Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
Suggested Tire Size:
- Maximum fitment: 37x12.50 tire
- 20'' x 9" wide wheel -18 offset

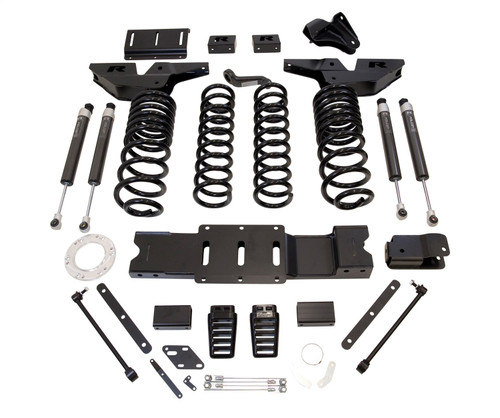

Kit Components
- 4.5" Front Lift Spring
- 3" Rear Lift Spring
- Falcon Shock, Front
- Falcon Shock, Rear
- Radius Arm Drop, Driver
- Radius Arm Drop, Passenger
- Front Track Bar Bracket
- Rear Track Bar Bracket
- Driver, Sway Bar Drop Bracket
- Passenger, Sway Bar Drop Bracket
- 12" Rear Sway Bar Endlink
- Replacement Front Bump Stop
- Rear Bump Stop Extension
- Pitman Arm, Drop, Replacement
- Transmission Connector Bracket
- Transmission Crossmember
- Transmission Harness Bracket
- Transmission Mounting Plate
- Transmission Mount Spacer
- 6 Bolt Clocking Ring
- Front Brakeline Bracket
- Rear Brakeline Bracket
- Pinch Clamp
- Hardware Pack
