Product Description
ReadyLift 6'' Lift Kit with Bilstein Shocks with Ring and Crossmember Standard Output Diesel Motor | 2019-2024 Dodge/Ram 3500 4WD | 49-19630
The new RAM HD trucks are more popular than ever and the ReadyLift 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could ReadyLift do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLift has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle? Well, that's exactly what ReadyLift did for this all-new Ram 3500 application. ReadyLift designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember.
Why go to all that trouble to achieve 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. ReadyLift's new 49-19630 6" lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of ReadyLift's DIS a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road.
Kit 49-19630 includes the new DIS re-positioning components, heavy-duty and great riding 6" lift front springs, 5" lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Bilstein 5100 series front/rear shocks.
- Standard 6.7L diesel with the 68RFE transmission - the transmission dipstick is on the right (passenger) side of the truck. (PN 49-19630)
*Kit will not fit any models with the high output 6.7L diesel motor with Aisin transmission, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
ReadyLift Lift Kit Features:
- 6" front lift with a 5" rear lift for the perfect lifted stance.
- Includes all-new Driveline Indexing System with transfer case clocking ring and new heavy-duty transmission crossmember.
- Maintains factory turning radius without rubbing when using the recommended wheel and tire size.
- Maintains factory suspension geometry and articulation.
- Includes 4 Bilstein 5100 series shocks tuned specifically for the Ram 3500 HD.
- For use on the Ram 3500 4WD HD Diesel Standard Output* engine trucks only (excludes gasoline-engine applications).
- Allows for up to 37x13.50 tires on 9" wide wheels with -18 offset.
Compatibility with ReadyLift's indexing ring from the transmission to the transfer case.
(This indexing ring re-clocks the 4x4 transfer case thus allowing the front output shaft for the front driveshaft an improved driveline angle)
This kit #49-19630 comes with the indexing ring for the 68RFE Transmission found behind the high output 6.7.
‚How can you tell what transmission is in yReadyLift's truck?
- High output 6.7 diesel with Aisin transmissions, The transmission dipstick will always be on the driver's side of the truck.
- Standard 6.7 diesel with the 68RFE transmission, the transmission dipstick will be on the passenger side of the truck.
Suggested Tire Size:
- Maximum fitment: 37x13.50 tire
- 9" wide wheel -18 offset

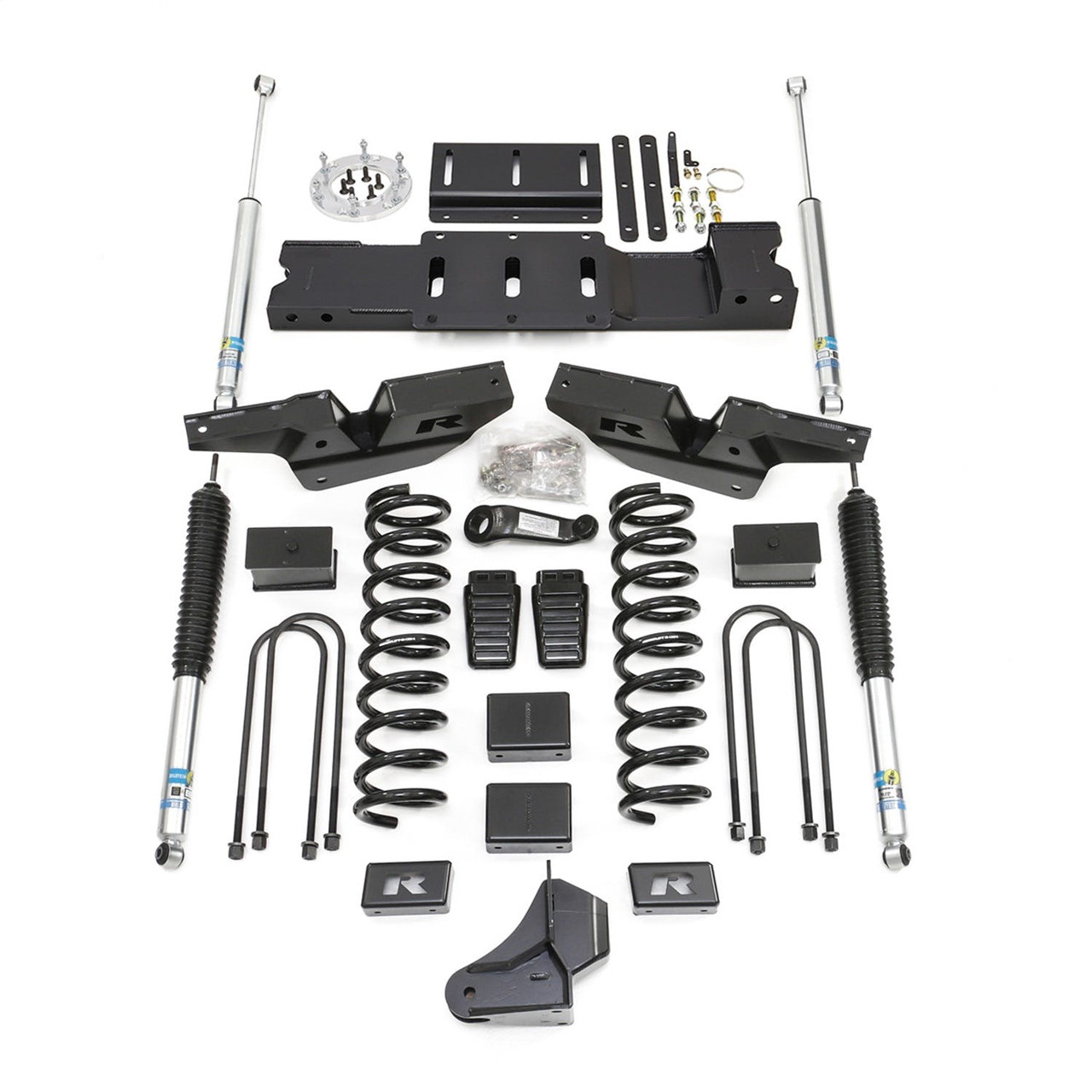

Kit Components
- Radius Arm Drop Bracket
- Nut Plate, Radius Arm Drop Bracket
- Driver, Sway Bar Drop Bracket
- Passenger, Sway Bar Drop Bracket
- Brake Line Bracket, Front
- 5" Replacement Front Bump Stop
- Coil Spring, Front
- 4-Inch Fabricated Taper Lift Block
- Front Track Bar Bracket
- Transmission Connector Bracket
- Transmission Crossmember
- Transmission Harness Bracket
- Transmission Mounting Plate
- Transmission Mount Spacer
- 8 Bolt Clocking Ring
- Zinc E-Brake Extension
- Zinc Rear Brakeline Bracket
- Rear Bump Stop Extension
- Transfer Case Spacer
- Pitman Arm, Drop, Replacement
- E-Brake Extension
- Rear Brakeline Bracket
- Bistein Shock, Front
- Bilsein Shock, Rear
- Hardware Pack
- Extended U-bolts with hardware
