Product Description
ReadyLift 4'' Coil Spring Lift Kit with Falcon 1.1 Monotube Front/Rear Shocks and Front Track Bar Bracket | 2017-2022 Ford F250/F350 Diesel 4WD | 49-27420
ReadyLift Suspension is now offering ReadyLift's first 4" Coil Spring Lift Kit fitting 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke trucks. The 49-27420 includes front and rear Falcon 1.1 Monotube series performance shocks with ReadyLift's venerable front track bar relocation bracket, radius arm drop brackets, and rear fabricated blocks. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance! Many consider this lift height the sweet spot for Super Duty driving dynamics and maximum tire size while maintaining everyday usefulness. This optimum lift height allows for up to 37" tall tires.
The coil spring kit delivers a great ride and handling performance! The key ingredients to improving yReadyLift's ride are the new specially engineered coil springs teamed with Falcon shocks and a track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road. The ReadyLift 4" Coil Spring lift kit system for 2017-2023 Ford Super Duty trucks also includes model-specific brake line extension brackets, ReadyLift's time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4" Coil Spring Suspension Kit System.
NOTE: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. 2017-2019 ride height may be slightly lower. Single Cab configuration has not been validated for fitment & drivability by ReadyLift.
ReadyLift Coil Spring Lift Kit Features:
- 4" Coil Spring Lift Kit With (4) Falcon 1.1
- Monotube Shocks
- Bolt-on lift kit - no structural modifications required
- Allows for up to 37" tall tires on 9" wide wheels with 0 offset
- Diesel trucks single-wheel only
- Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.
- Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road.‚ High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.
- Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions
- Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.
- Falcon 1.1 Monotube Shock Specification
- 2-1/8" shock body for high-value performance
- 6061-T6 aluminum alloy billet piston
- 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling
- Microcellular Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
Suggested Tire Size:
- 37x12.50 for no rub on a 9" wide wheel with 0 offset
- 18" - 37X12.5R18
- 20" - 37X12.5R20
- 22" - 325/60R22

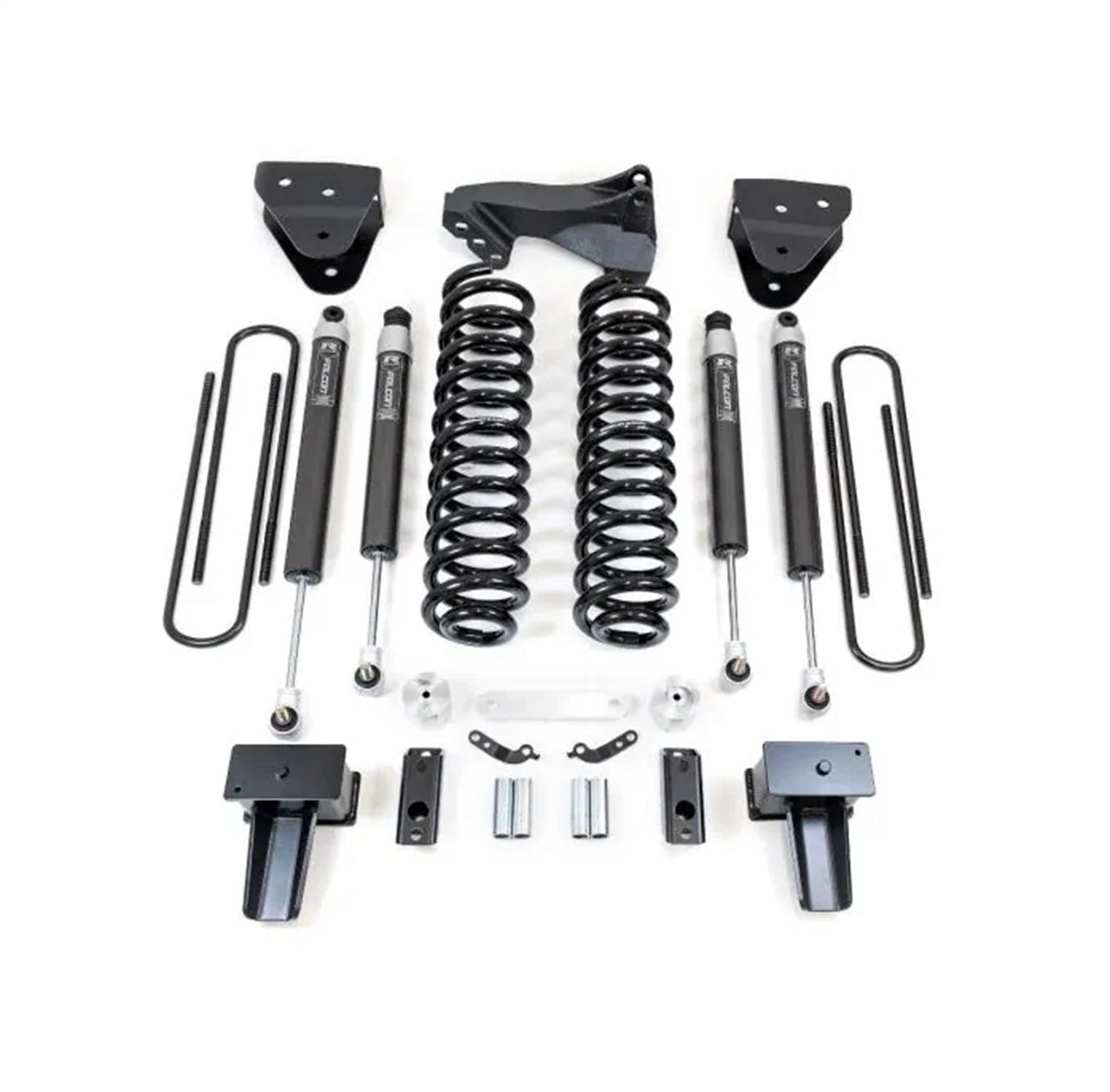

Kit Components
- 4" Lift Springs
- Falcon 1.1 Monotube Front and Rear Shocks
- Track Bar Relocation Bracket
- Radius Arm Drops
- Sway Bar Drops
- Bump Stop Extensions
- Carrier Bearing Drop
- Front Brake Line Brackets
- Fabricated Rear Lift Blocks
- Hardware Pack
