Product Description
ReadyLift 6'' Lift Kit with Falcon 1.1 Monotube Shocks w/ Rear Air | 2022-2024 Toyota Tundra RWD, 4WD | 44-52660
ReadyLift has had tremendous success with ReadyLift's leveling and SST lift kits for the 2022-UP Toyota Tundra and ReadyLift are excited to announce two all-new suspension solutions: ReadyLift's all-new Big 6 lift kits for trucks equipped with rear coil spring and factory air configuration. Drawing on ReadyLift's Tundra first-class product success, ReadyLift Tundra 6 lift kits incorporate ReadyLift's all-new Falcon 1.1 monotube shocks specifically designed, engineered, and tuned for 2022+ Toyota Tundra Trucks!
The all-new 6 lift kits for Tundra trucks are packed with great standard features! Starting with ReadyLift's ultra-strong laser cut, CNC bent, welded, and boxed sub-frame drop assemblies that maintain suspension geometry and increase available ground clearance! ReadyLift's proprietary, precision-designed cast iron front knuckles feature CNC-machining to ensure fit while retaining the factory tie rods with minimal trimming required.
The ReadyLift sub-assembly design features a truly innovative approach to dropping the differential. The differential drop system is engineered for easy installation. The sub-assembly correctly positions the differential to maintain CV axle and driveline angles. With 44-52620 (non-rear air) & 44-52660 (with rear air) lift kits, you can rest assured premature tire wear wont be an issue. The ReadyLift system is built around maintaining proper alignment and geometry specifications. Additionally, ReadyLift also includes thoughtful accessories such as new bump stop extensions all the way around as well as sway bar frame mount brackets to keep the front sway bar in a factory geometry. All of this contributes to an excellent driving and handling suspension system that truly elevates the typical Toyota Tundra truck!
NOTE: Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option or trucks equipped with Load-Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS). Kits only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels at 20" or larger are compatible (confirm fitment prior to installation). For Tundra with Rear Coil Spring use part number 44-52620.
ReadyLift Big Lift Kit Features:
- Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires
- Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires
- Includes two Falcon 1.1 monotube rear shocks
- Retains factory turning radius
- Allows for use of stock 20 wheels
Suggested Tire Size:
- Allows for 5.75" backspace (18-20mm Offset) on 20x9 with 35" tires
- Max tire with trimming 5.5" backspace (10-13mm Offset) on 20x9 with 37" tires

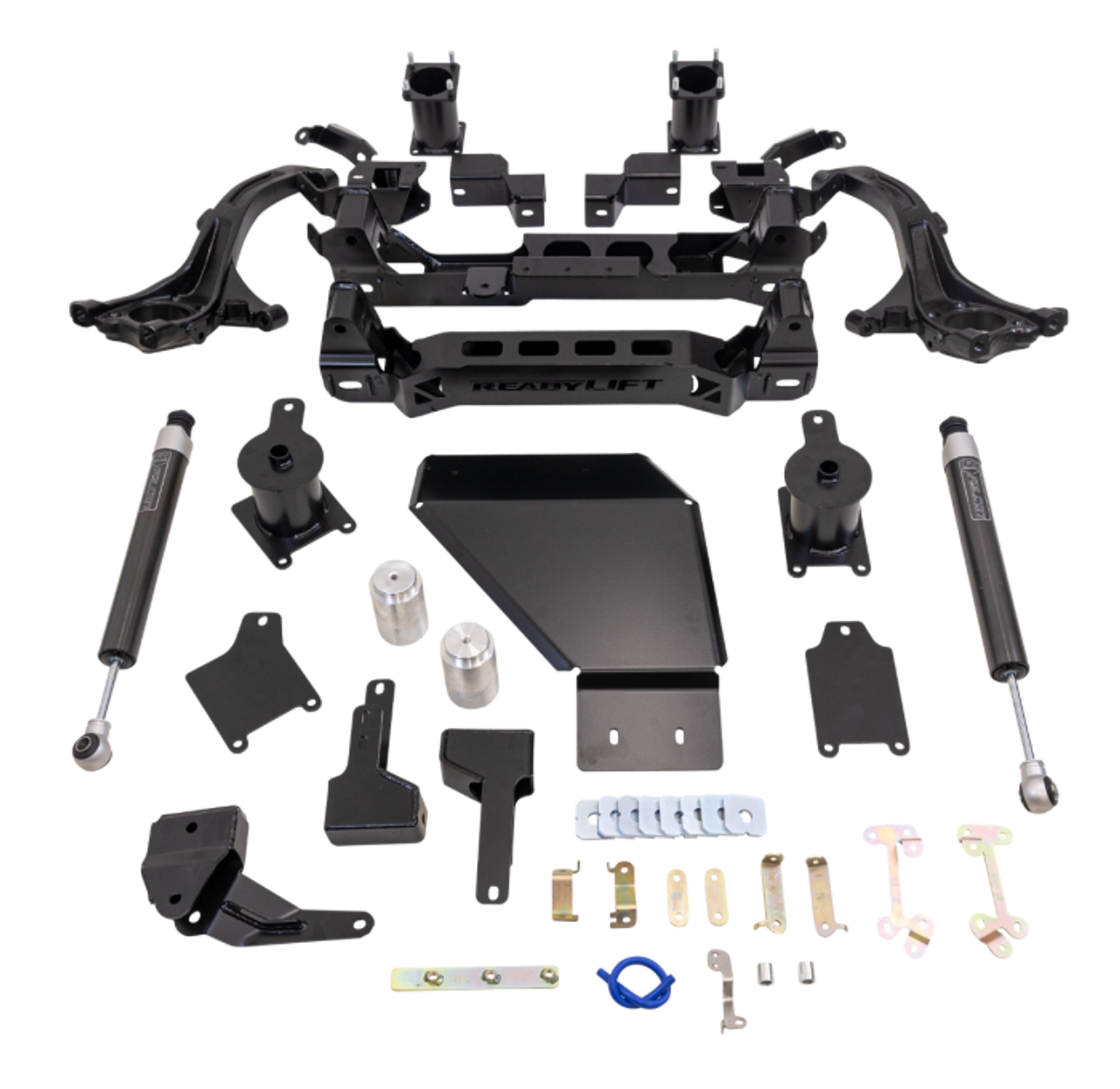

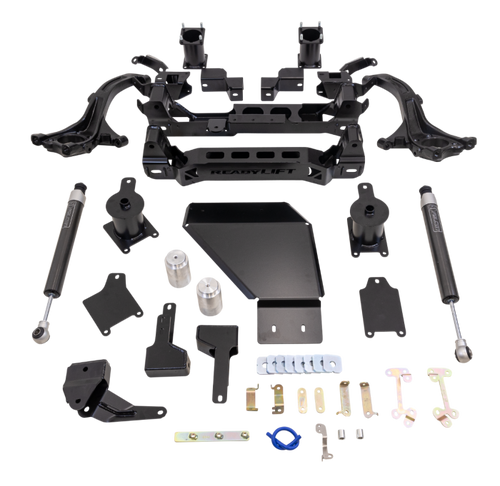

Kit Components
Front Crossmember, Rear Crossmember, Skid Plate, Front Brake Line Bracket - Right 2, Front Brake Line Bracket - Right 1, Front Brake Line Bracket - Left 1, Front Brake Line Bracket - Left 2, Knuckle - Left Hand Side, Knuckle - Right Hand Side, Front Strut Spacer, Front Sway Bar Drop - Left, Front Sway Bar Drop - Right, Cam Block Off Plates, Headlight Sensor Bracket Sleeve and HSB-Left, Front Bump Stop - Left, Front Bump Stop - Right, Rear Crossmember Nut Plate, 1/4" Front Differential Vent Hose, Rear Trackbar Bracket, Rear Sway Bar Drop - Left, Rear Sway Bar Drop - Right, Rear Bump Stop - Left, Rear Bump Stop - Right, Rear ABS Relocator, Rear ABS Bracket, Falcon 1.1 Rear Shock, Hardware pack for 44-52620, Hardware pack for 44-52660 AIR SPACERS, REAR AIR SPACER RIGHT, REAR AIR SPACER LEFT, REAR AIR SPACER PLATE RIGHT, REAR AIR SPACER PLATE LEFT, AIR SENSOR BRACKET LEFT, AIR SENSOR BRACKET RIGHT, REAR AIR SPACER NUT, M10-1.5 LOCK NUT, Hardware pack, Instruction manual
