ReadyLift 4.0'' Front with 2.0'' Rear SST Lift Kit with Bilstein Rear Shocks | 2009-2024 Dodge/Ram 1500 Classic 4WD | 69-1041
ReadyLift now offers an excellent upgraded version of ReadyLift's extremely popular classic body style Ram 1500 4WD (2009-2018 and 2019-2024 Classic body style - same body style as the 2009-2018) 4" SST Lift Kit. For years the 69-1040 4" SST lift kit has been the go-to bolt-on lift system for Ram truck owners and has served these customers very well. Always striving to improve ReadyLift's product offering, ReadyLift have recently upgraded this popular lift kit with all-new tube steel upper control arms that feature ReadyLift's TCT non-bonded, maintenance-free pivot bushings with side-biter washers and heavy-duty 1-ton ball joints. These Gen 2 control arms will ensure excellent ride and suspension geometry while ensuring a long life of maintenance-free operation. While ReadyLift's classic 4" SST Lift Kit does not require longer rear shocks, customers with aging trucks have often asked ReadyLift for a rear shock replacement.
The new 69-1041 4" SST Lift Kit provides an ideal solution by including Bilstein 5100 series rear shocks for 0-2" of rear lift. Can you make something that is already good, even better? ReadyLift think that ReadyLift have with the all-new 69-1041 4" SST Lift Kit. Creating a new lift kit with even better UCAs that includes popular Bilstein rear shocks is definitely a great option for classic body Ram 1500 4WD truck owners. You can now upgrade yReadyLift's factory front struts to a Bilstein 5100 series replacement body - 24-187367 - This Bilstein is adjustable. If you choose to upgrade, the front strut must be set to the 0 or factory setting to be used with the 4" lift kit. Max tire diameter: 35"Minimum offset - +18 for a 295/65-20 or 0 offset for a 35x12.50
NOTE: Not for use with factory air suspension. Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLift.
ReadyLift SST Lift Kit Features:
- Bolt on installation - no modifications required
- 4" lift Front - 2" lift Rear
- Allows for up to a 35" tire. Requires 0 offset wheel when using 35x12.50 tire.
Suggested Tire Size:
- Max tire diameter - 35"
- 35x12.50 requires 9" wide wheel with 0 offset
- 295/65-20 tire requires no less than +18.

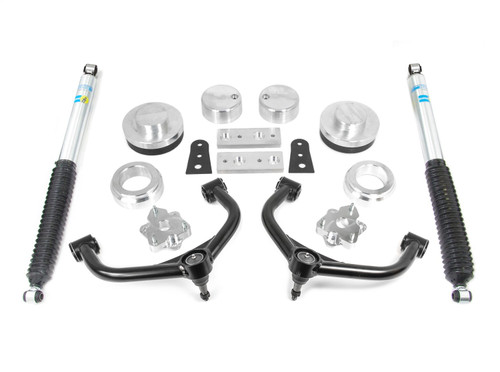

Kit Components
- Two heavy-duty DOM tube steel upper control arms with corrected heavy duty 1-ton ball joint pivot angles.
- Two top mount front CNC machined billet aluminum strut extensions
- Two front pre-load spacers
- Two rear coil spring spacers with polyurethane spring isolators
- Two bump stop extensions
- Sway bar drop spacers
- Two rear Bilstein 5100 series shocks
