ReadyLift 3.5'' SST Lift Kit (Non-Air Ride Equipped) | 2019-2025 Dodge/Ram 1500 RWD/4WD | 69-1935
ReadyLift offers a mild lift solution to properly enhance the stance and driving quality of the 2019-2025 Ram 1500 truck 2WD/4WD. Like the body design, the suspension design of the 2019-2025 Ram 1500 features some unique design elements that differ from the previous generation Ram. These differences were tackled by ReadyLift's engineers as a result, ReadyLift now offer a new SST lift kit exclusively for the new Ram 1500 2WD/4WD trucks.
The 69-1935 SST lift kit provides 3.5" of front lift and 2" of rear lift. The new body style Ram now comes with a composite upper control arm with a sheet metal cover. ReadyLift's engineers determined the the best kit solution would be to include ReadyLift's DOM tube steel upper control arms with corrected ball joint angles. The lift is delivered by way of CNC-machined billet aluminum top mount strut extensions and spring pre-load spacers. This combination generates a true 3.5" of front lift which is perfect for installing up to a 35" tall tire on a 20x9 inch wheel with a 0 offset. This lift works great without exceeding the CV limits which works well within the OEM tolerances.
The 2019-2025 has a new rear set up which requires an all-new fabricated steel rear coil spring spacer. This spacer provides 2 inches of rear lift and also includes rear bump stop extensions to control compression. ReadyLift's 69-1935 3.5" SST Lift Kit will get the job done right and affordably.
Note: Not for use on factory air suspension equipped trucks.
Note: NOT intended for off-road use or abuse. Note: If running a 35x12.50-20, the minimum wheel offset is 0 offset on a 9" wide wheel. If running a 295/65-20 the minimum is a +18 offset to ensure the tire does not rub the control arm at full turn.
ReadyLift SST Lift Kit Features:
Max tire: 35x12.50 on a 20x9 with‚ 0 offset.

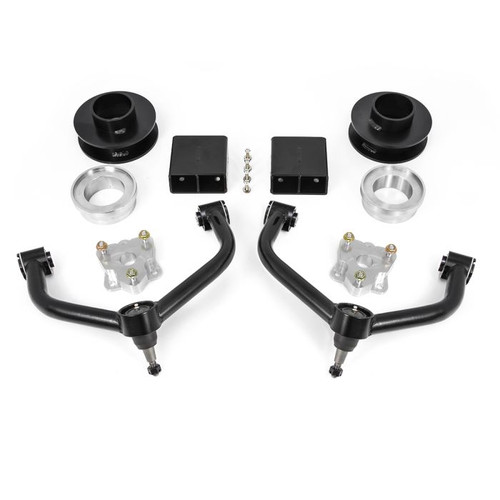

Kit Components
- Tubular upper control arms with corrected ball joint cup angles and heavy-duty ball joints
- CNC machined billet aluminum top hat spacers and pre-load spring spacers
- Heavy-duty fabricated steel rear coil spring spacers
- Fabricated steel rear bump stop landing pads
