Product Description
ReadyLift 3.5'' SST Lift Kit Front with 2'' Rear with Fabricated Control Arms with Falcon 1.1 Monotube Shocks | 2011-2019 Chevrolet/GMC 2500HD RWD, 4WD | 69-35140
ReadyLift Suspension Inc. is excited to offer ReadyLift's popular 3.5" SST Lift Kit for 2011-2019 Chevy and GMC 2500HD truck with ReadyLift's all-new heavy-duty Xtreme-Duty upper control arms. This is a premium lift solution that won't break the bank nor permanently modify yReadyLift's truck. This is a true bolt-on Lift kit with the premium benefit of including ReadyLift's new ultra heavy-duty control arms! The 69-35140 SST Lift Kit by ReadyLift will lift the front of yReadyLift's new HD truck a maximum of 3.5 inches! This awesome SST Lift Kit for 2011-19 GM HD trucks includes a pair of tough heavy-duty fabricated steel upper control arms with 1-ton ball joints and maintenance-free TCT pivot bushings. This kit is engineered to match the strength of yReadyLift's truck. 2011-2019 2500HD-specific lift-oriented ReadyLift forged torsion keys provide an adjustable lift while maintaining the factory ride.
These super strong forged torsion keys are stronger than stock with the same design and features an indexing that is unique to this kit! The 69-35140 Lift Kit also includes CNC-machined differential drop spacers which lowers the differential and puts the front CV axles into safe factory angle on 4WD trucks. 2WD trucks will not use the diff spacers. To lift the rear of yReadyLift's new Chevy Silverado 2500HD truck, the ReadyLift SST Lift Kit includes OEM style 2.0" cast iron rear lift blocks complete with new u-bolts and hardware.
This kit includes Falcon 1.1 Monotube Shocks. Also included with this kit are new super strong tie-rod end assemblies to replace the weak factory versions. For the longest time, GM tie rod assemblies have been a weak link on all GM trucks. These heavy duty steering assemblies install easily and incredibly stronger than the OEM units. You won't find this kind of attention to detail with any other lift kit for the new GM HD trucks! This great combination gives the new GM HD trucks a great raised stance using super strong components and allows for up to a 34" tall tire.
NOTE: Single Rear Wheel Only.
NOTE: Not for use on trucks equipped with factory TOP overload spring commonly referred to as a camper package.
NOTE: Lift height must not exceed 27.25" when measured from the center of the wheel to the fender lip above the 12 o'clock position for 4WD and 28" for 2WD vehicles.
ReadyLift SST Lift Kit Features:
- ‚Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.
- ‚Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road.‚ ‚ High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.‚
- ‚Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions
- ‚Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.
- ‚Falcon 1.1 Monotube Shock Specifications
- 2-1/8" shock body for high-value performance
- 6061-T6 aluminum alloy billet piston
- 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling
- Microcellular Å“Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
Suggested Tire Size:
- 34" Maximum tire diameter
- 34x11.50 for no rub on a 9" wide wheel with +12 offset
- 18" - 295/70R18
- 20" - 275/65R20
- 22" - 285/55R22

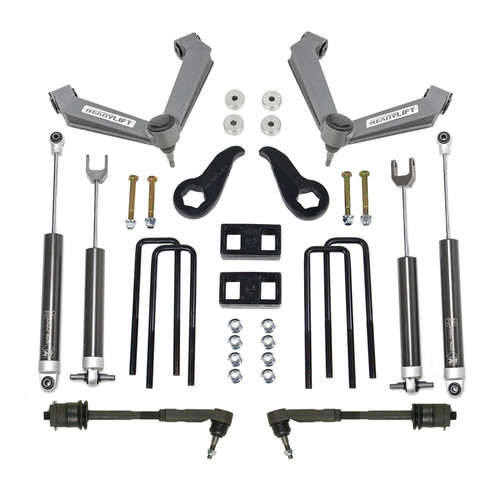

Kit Components
- 2 Xtreme-duty fabricated steel upper control arms
- 2 Forged torsion leveling keys
- 4 Differential drop spacers
- 2 heavy duty tie rod assemblies
- 2 OEM style cast iron rear lift blocks with longer u-bolts
- 4 Falcon 1.1 Monotube shocks
