Product Description
ReadyLift 3.0'' SST Lift Kit Front with 1.25'' Rear with Upper Control Arms without Shocks | 2022-2024 Toyota Tundra 2WD, 4WD | 69-52310
Toyota's newest Tundra has become a popular choice for new truck owners. And like the Tundra's before it, new 2022-2024 owners want a quality bolt-on mild lift system that will increase ground clearance and add room for larger wheels and tires, all while maintaining the great factory ride and handling. Introducing the ReadyLift 69-52310 3" SST Lift Kit exclusively engineered for the new 2022-2024 Toyota Tundra pickups.
This new SST lift kit is a second-generation version of ReadyLift's popular 69-5475 3" SST lift kit for the 2021 and older models. Many of the same premium features found in that kit have migrated to the new 69-52310 kit such as ReadyLift's popular tubular control arms with corrected ball joint pivot angles. Fabricated steel front strut spacers 2" tall precision fabricated steel rear lift spacers with new longer U-bolts give the 2022-2024 Tundra a nice, nearly level stance with 3" of lift in front, and the kit includes new rear shock extensions so you can retain use of yReadyLift's factory rear shocks.
The all-new 69-52310 2022-2024 Toyota Tundra 3" SST lift kit is an excellent choice for those who want to run larger tires such as 35s. The maximum tire size for use with this kit is a 35x12.5 on a 18"x9" wide wheel with +12 offset.
Note: Toyota OEM lift kit cv shafts PT362-3432B and PT362-3431B are recommended by Toyota on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer.
ReadyLift SST Lift Kit Features:
- No modifications required.
- 3" front lift with a 2" tall rear spacer kit.
- Allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset.
- Includes strong tubular steel Control Arms with heavy-duty ball joints.
- No Cutting of OEM Parts or Welding Maintains Factory Ride
Suggested Tire Size:
- 35" Maximum tire diameter
- 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

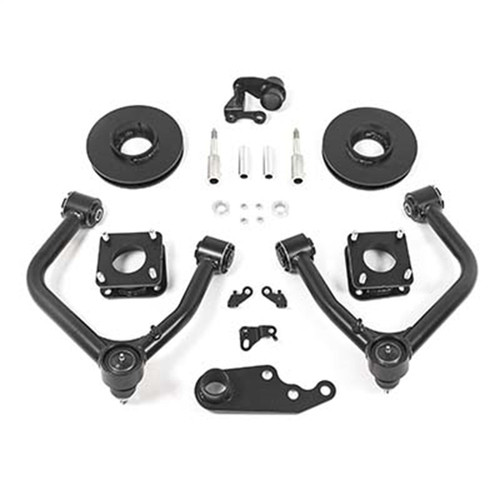

Kit Components
Front Strut Spacer, Rear Spring Spacer, Rear Shock Extension, Upper Control Arm Left Hand Side, Upper Control Arm Right-hand Side Front Differential Drop Left Hand Side, Front Differential Drop Right Hand Side, Crush Sleeve, Differential Drop Polyurethane Bushing, End Link Spacer Brake Line Relocation Bracket Left Hand Side, Brake Line Relocation Bracket Right Hand Side, Rear Brake Line Spacer, Rear Brake Line Relocation Bracket, Hardware Pack
