ReadyLift 8.5'' Lift Kit with Falcon Shocks, Dual Steering Stabilizer, and Tubular Radius Arms | 2017-2022 Ford F250/F350 Diesel 4WD | 49-27851

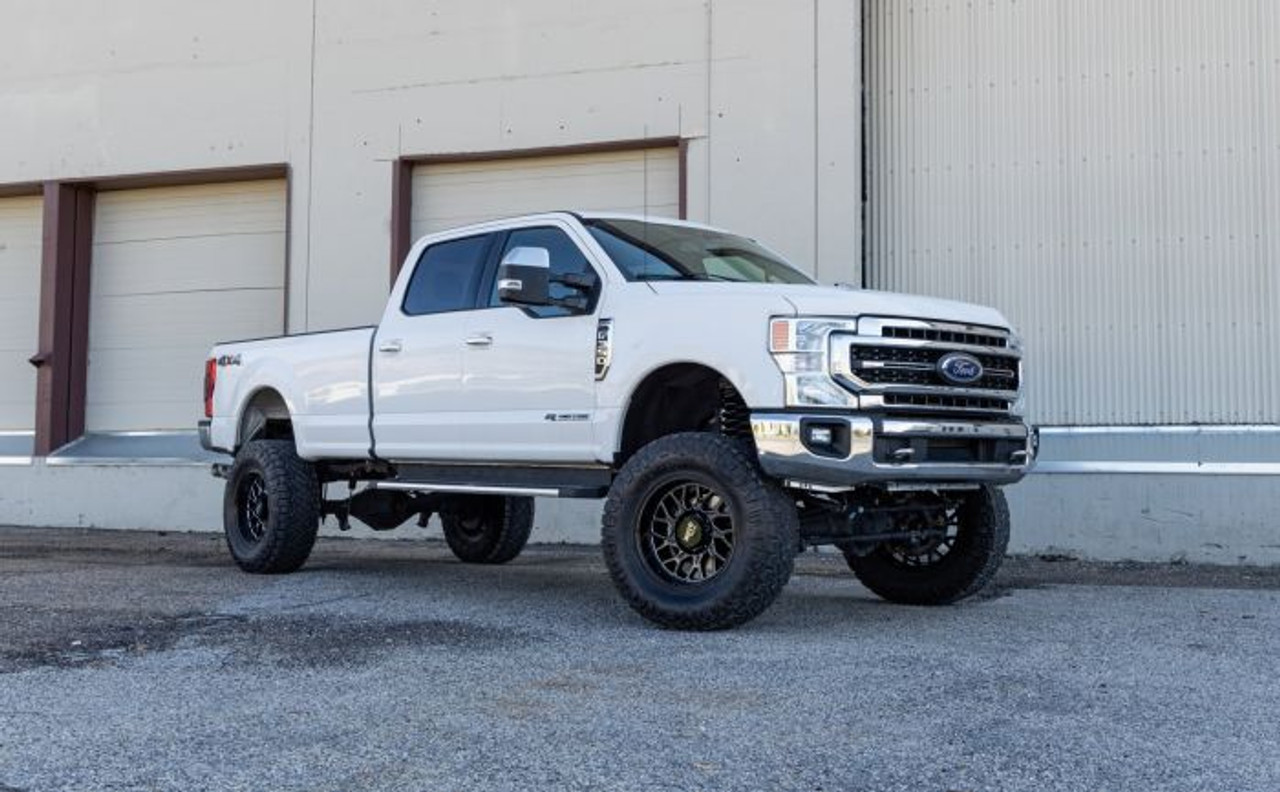

ReadyLift , a leader in the lifted suspension market, is proud to announce the release of ReadyLift's new 8.5" Coil Spring Baller Lift Kit for 2017-2022 4WD Ford Super Duty F250/F350 trucks equipped with a 6.7L Power Stroke® diesel engine. This lift kit is designed to provide an elevated experience for drivers who are looking to take their vehicles to the next level. This new kit includes ReadyLift's 4-corner 1.1 Falcon shocks and Tubular Radius Arms built to handle everything customers throw at Super Duty trucks. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance!
The ReadyLift 8.5 Coil Spring Lift Kit delivers superior ride quality, improved ground clearance for off-road adventure, and an impressive stance that draws envious looks wherever you go. This exclusive lift kit includes all necessary components including heavy-duty coil springs, brake line relocation brackets, extended sway bar links, bump stop extensions, radius arms, and more! The all-new big lift kit includes fReadyLift's Falcon 1.1 Monotube shocks designed and tuned specifically for this application.
Note: Fits 2017-2022 Ford Super Duty F-250 / F-350 Power Stroke® diesel 4WD. Single rear wheels only. Diesel trucks only -not compatible with gas engine trucks.
ReadyLift Lift Kit Features:
- All-new and improved Driveline Indexing System preserves driveline angles.
- Tubular Radius Arms help to correct the caster angle.
- Max Tire 38x13.50 on 10" wide wheel with +12 offset.
Falcon Shocks The Ultimate Blend of Performance, Quality, and Bang for the Buck
- Falcon 1.1 Monotube Shocks deliver increased stability improved ride quality and comfort for a daily-driven vehicle in an economical, compact performance package.
- Falcon 1.1 Monotube Shocks have been optimized for on-road driving with increased stability over stock for driven vehicles on and off road. High-Value Performance is the driving force behind these vehicle-specific dampers for trucks and SUVs.
- Falcon 1.1 Monotube Shocks are ideal for daily driven trucks and SUVs as well as the enthusiast wanting a consistent controlled feel through all driving conditions
- Falcon 1.1 Monotube shocks include race-inspired performance, handling, and stability for off-road rigs. Falcon Jeep shock absorbers will significantly increase the chassis performance of any lifted truck or SUV.
- Falcon 1.1 Monotube Shock Specifications
- 2-1/8" shock body for high-value performance
- 6061-T6 aluminum alloy billet piston
- 1/2" induction hardened chrome plated shaft resists rock damage corrosion and shaft buckling
- Microcellular Foam Progressive Bump Stops (Bump stop configuration varies depending on shock absorber collapsed length, tire size, and fenders.)
Suggested Tire Size:
- 38" Maximum tire diameter
- 37x12.50 for no rub on a 9" wide wheel with 0 offset
- 38x13.50 on 10" wide wheel with +12 offset
- 18" - 37X12.5R18
- 20" - 37X12.5R20
- 22" - 325/60R22

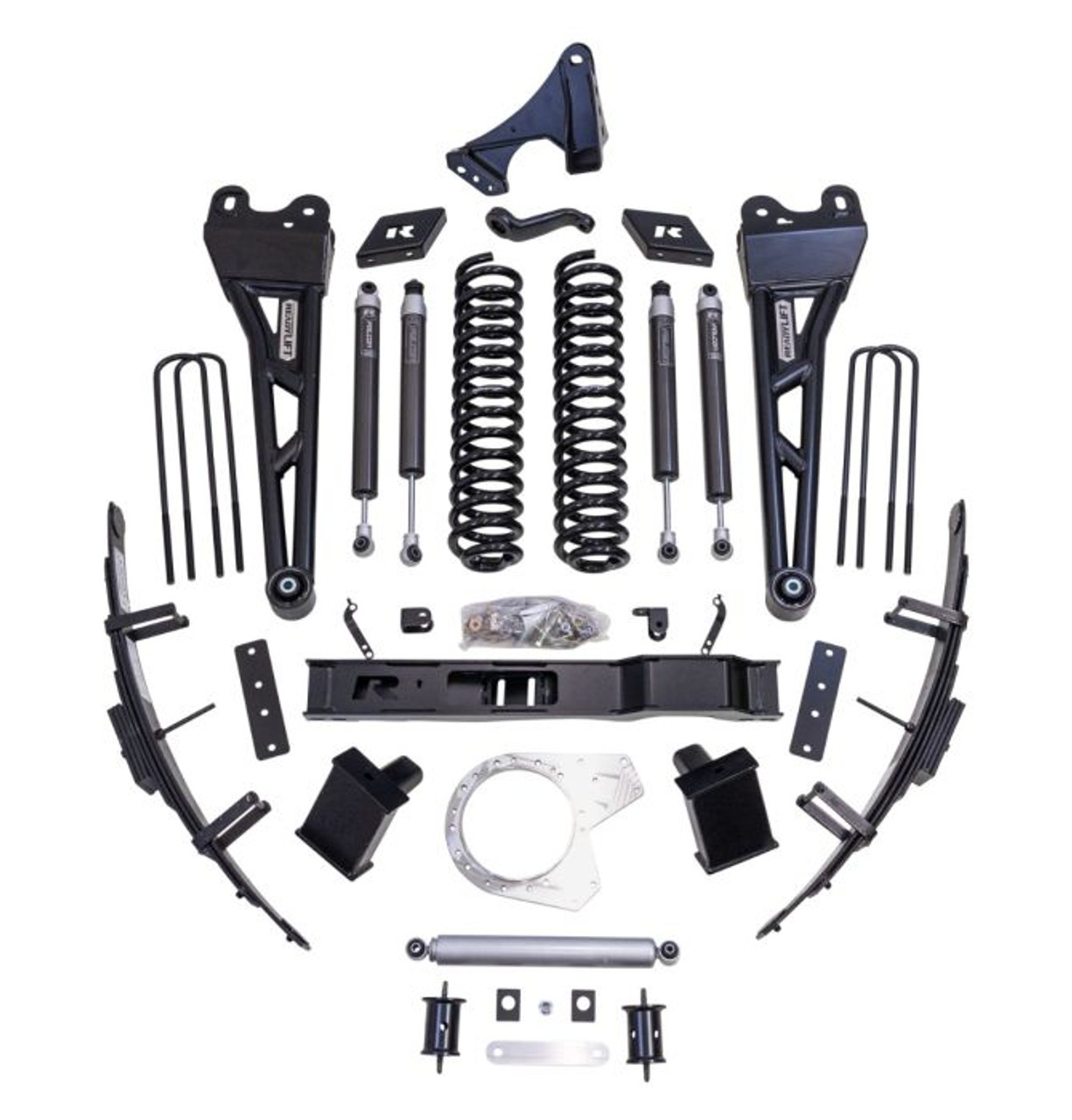

Kit Components
- LIFT SPRING
- DROP PITMAN ARM
- TRACK BAR BRACKET
- TRACK BAR BRACKET WASHER
- FRONT BUMP STOP EXTENSION
- FRONT SWAY BAR BRACKET, DRIVER
- FRONT SWAY BAR BRACKET, PASSENGER
- RADIUS ARM, DRIVER
- RADIUS ARM, PASSENGER
- RADIUS ARM CRUSH SLEEVE
- BRAKE LINE BRACKET DRIVER
- BRAKE LINE BRACKET PASSENGER
- STEERING STABILIZER BRACKET FRAME
- STEERING STABILIZER BRACKET TIE ROD
- STEERING STABILIZER CONE WASHER
- REAR SWAY BAR BRACKET
- REAR BLOCK DRIVER
- REAR BLOCK PASSENGER
- U-BOLT
- U-BOLT HARDWARE PACK
- FRONT SHOCK
- REAR SHOCK
- STEERING STABILIZER
- TRANSFER CASE CLOCKING RING
- TRANSMISSION CROSS MEMBER
- CARRIER BEARING SPACER
- ADD-A-LEAF PACK
- HARDWARE PACK
